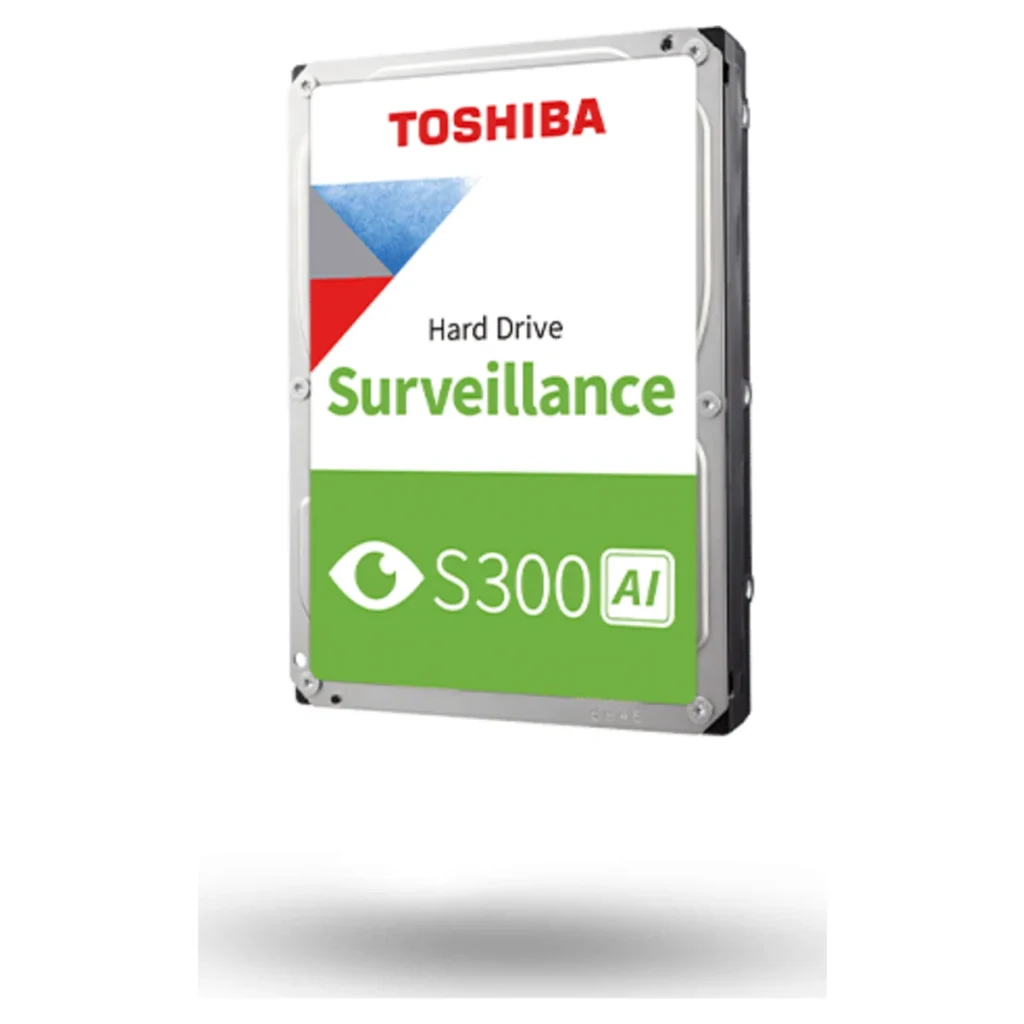

Toshiba S300 AI 14TB 3.5″ Surveillance Hard Drive – Overview
Capacity
14TB
3.5-inch bulk drive with 512e sector format
14TB
3.5-inch bulk drive with 512e sector format
Speed
7200 RPM
SATA 6 Gbit/s interface
7200 RPM
SATA 6 Gbit/s interface
Cache
1GB buffer
1,024MB cache for multi-stream recording and playback
1GB buffer
1,024MB cache for multi-stream recording and playback
Recording
CMR, helium-sealed
Built on Toshiba’s MG11 enterprise drive platform
CMR, helium-sealed
Built on Toshiba’s MG11 enterprise drive platform
AI workloads
Up to 32 AI streams
Alongside up to 64 camera streams for recording
Up to 32 AI streams
Alongside up to 64 camera streams for recording
Workload
550TB per year
Rated for 24/7 use in systems with up to 24 bays
550TB per year
Rated for 24/7 use in systems with up to 24 bays
Reliability
2.5 million hours MTTF
Rotational vibration safeguard and shock sensor
2.5 million hours MTTF
Rotational vibration safeguard and shock sensor
Acoustics
20 dB at idle
Typical active-idle noise level; weighs up to 730 g
20 dB at idle
Typical active-idle noise level; weighs up to 730 g
Warranty
5 Year Carry-In
Toshiba limited warranty
5 Year Carry-In
Toshiba limited warranty
Toshiba S300 AI 14TB 3.5″ Surveillance Hard Drive Specifications
| General | |
|---|---|
| Brand | Toshiba |
| Series | S300 AI Surveillance Hard Drive |
| Model (bulk) | MG11ACA14TE-V |
| Retail equivalent | HDWTB1EEZSTA |
| Toshiba part code | HDEB03EZSA51 |
| Packaging | Bulk (drive only) |
| Drive | |
| Capacity | 14TB |
| Form factor | 3.5″ |
| Interface | SATA 6 Gbit/s |
| Rotational speed | 7200 RPM |
| Buffer | 1,024MB |
| Recording technology | CMR |
| Mechanical design | Helium-sealed |
| Sector size | 512e |
| Sustained transfer rate | 295 to 309 MB/s (varies by capacity) |
| Surveillance and Reliability | |
| Camera streams | Up to 64 |
| AI streams | Up to 32 |
| Drive bays supported | Up to 24 |
| Workload rating | 550TB per year |
| MTTF | 2,500,000 hours |
| 24/7 operation | Yes |
| Power and Environment | |
| Acoustics (active idle) | 20 dB (typical) |
| Operating temperature | 5 to 60 °C (surface) |
| Physical | |
| Dimensions (L x W x H) | 147 x 101.85 x 26.1 mm (max) |
| Weight | 730 g (max) |
| In the Box and Warranty | |
| In the box | Toshiba S300 AI 14TB internal hard drive (bulk, drive only) |
| Warranty | 5 Year Toshiba Carry-In |
About the Toshiba S300 AI 14TB 3.5″ Surveillance Hard Drive
The Toshiba S300 AI 14TB is a helium-sealed 3.5-inch surveillance drive for recorders and servers that combine video storage with AI analytics. It handles up to 64 camera streams and up to 32 AI streams, carries a 550TB per year workload rating and is built for 24/7 duty in systems with up to 24 bays. The 7200 RPM CMR drive has a 1GB buffer, and its MG11 enterprise platform brings an MTTF of 2.5 million hours. As a bulk 14TB drive it suits growing camera systems that need longer retention, backed by a five year Toshiba warranty.
