Antec Performance 1 M Mini-ITX Small Form Factor Case (Black) – Overview
Form factor
Mini-ITX SFF
Compact 424 x 175 x 260 mm chassis for Mini-ITX boards
Mini-ITX SFF
Compact 424 x 175 x 260 mm chassis for Mini-ITX boards
Build
Aluminium and steel
Aluminium side panels and rear frame on a CNC-machined chassis
Aluminium and steel
Aluminium side panels and rear frame on a CNC-machined chassis
GPU support
Up to 350 mm long
Up to 78 mm thick, 3 slots in Max GPU mode
Up to 350 mm long
Up to 78 mm thick, 3 slots in Max GPU mode
CPU cooler
Up to 85 mm
Adjustable central mount trades GPU thickness for cooler height
Up to 85 mm
Adjustable central mount trades GPU thickness for cooler height
Power supply
SFX or SFX-L
Units up to 130 x 125 x 63.5 mm
SFX or SFX-L
Units up to 130 x 125 x 63.5 mm
Riser
PCIe 4.0
Graphics card connects through a PCIe 4.0 riser cable
PCIe 4.0
Graphics card connects through a PCIe 4.0 riser cable
Fan support
2 x 120mm or 2 x 140mm
Bottom mounts behind a dust filter, perforated panels
2 x 120mm or 2 x 140mm
Bottom mounts behind a dust filter, perforated panels
Front I/O
USB-C 10Gbps
Single Type-C port beside the power button
USB-C 10Gbps
Single Type-C port beside the power button
Warranty
2 Year Carry-In
Antec manufacturer warranty
2 Year Carry-In
Antec manufacturer warranty
Antec Performance 1 M Mini-ITX Small Form Factor Case (Black) Specifications
| General | |
|---|---|
| Brand | Antec |
| Model | Performance 1 M Black |
| Part number | PERFORMANCE 1M |
| UPC | 0-761345-10168-4 |
| Colour | Black |
| Case type | Mini-ITX small form factor |
| Materials | Steel, plastic, aluminium |
| Side panels | Perforated, tool-free |
| Compatibility | |
| Motherboards | Mini-ITX |
| Expansion slots | 3 (Max GPU mode) / 2 (Max CPU cooler mode) |
| Drive bays | 1 x 2.5″ |
| Max GPU length | 350 mm |
| Max GPU thickness | 78 mm (with a CPU cooler up to 47 mm) |
| Max CPU cooler height | 85 mm (with a GPU up to 40 mm thick) |
| GPU thickness + cooler height | 125 mm combined |
| Power supply | SFX or SFX-L only, up to 130 x 125 x 63.5 mm |
| Riser cable | PCIe 4.0 |
| Cooling | |
| Fan support | Bottom: 2 x 120mm or 2 x 140mm |
| Dust filter | Bottom |
| Front Panel | |
| I/O ports | 1 x USB Type-C (10Gbps) |
| Buttons | Power |
| Physical | |
| Dimensions (D x W x H) | 424 x 175 x 260 mm |
| Net weight | 4.90 kg |
| Gross weight | 5.75 kg |
| In the Box and Warranty | |
| In the box | Performance 1 M chassis |
| Warranty | 2 Year Antec Carry-In |
About the Antec Performance 1 M Mini-ITX Small Form Factor Case (Black)

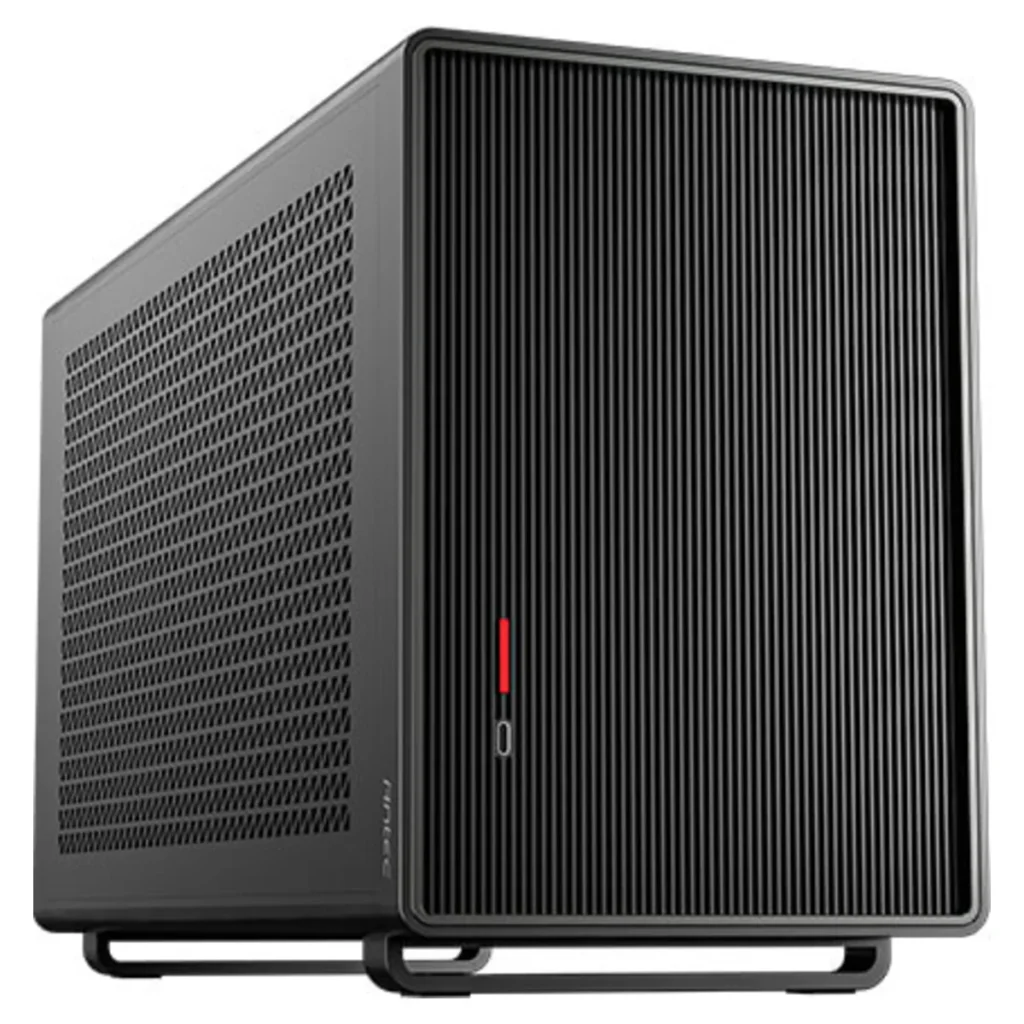

The Antec Performance 1 M is a black Mini-ITX small form factor case for compact gaming or workstation builds that still need a large graphics card. Its CNC-machined chassis uses aluminium side panels and rear frame, with perforated panels for ventilation. An adjustable central mount lets you favour either a thick graphics card (up to 78 mm, 350 mm long) or a taller CPU cooler (up to 85 mm). Power comes from an SFX or SFX-L unit, the graphics card connects through a PCIe 4.0 riser, and two 120mm or 140mm fans fit in the base.
