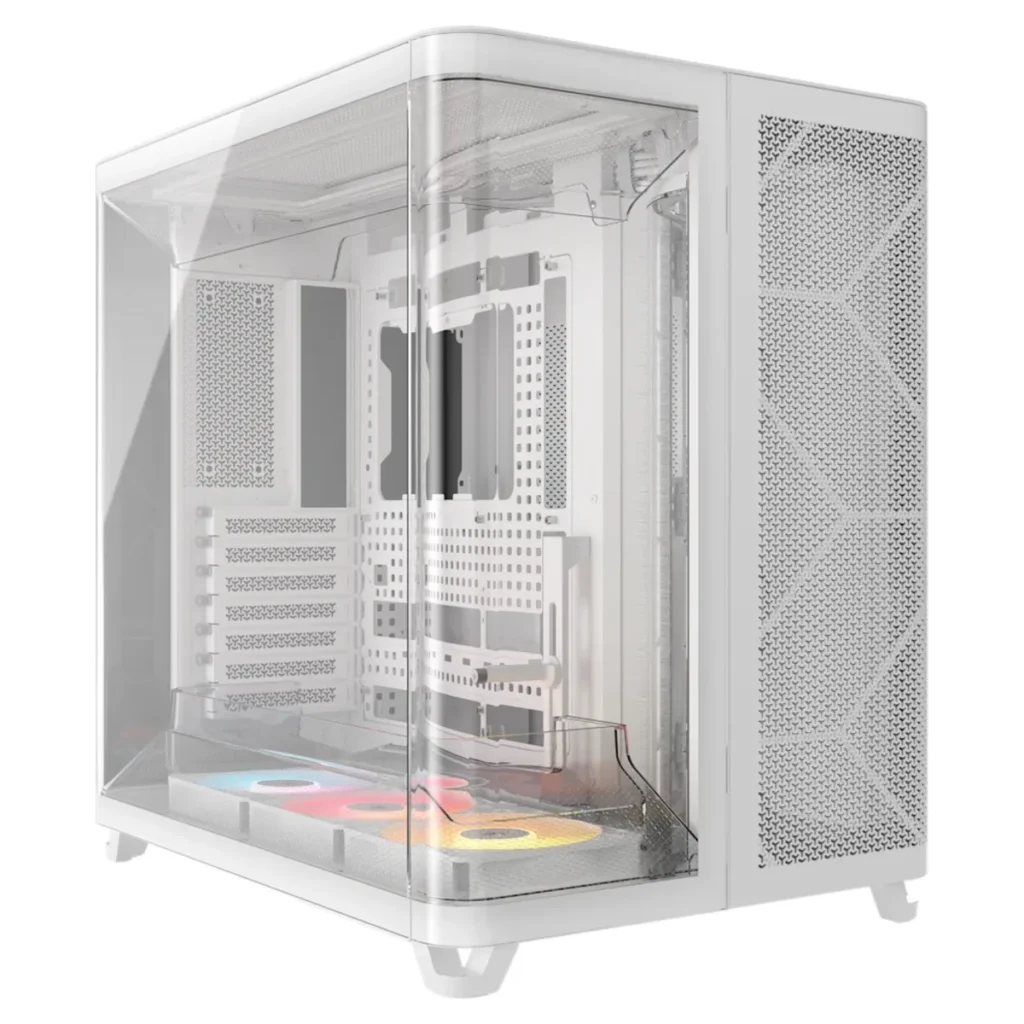

Corsair Air 5400 RS-R ARGB Triple Chamber Mid-Tower Gaming Case (White) – Overview
Design
Triple-chamber mid-tower
Separate chamber for the CPU cooler, isolated from GPU and PSU heat
Triple-chamber mid-tower
Separate chamber for the CPU cooler, isolated from GPU and PSU heat
Form factor
Up to E-ATX
Mini-ITX to E-ATX (305 x 277 mm), reverse-connector boards supported
Up to E-ATX
Mini-ITX to E-ATX (305 x 277 mm), reverse-connector boards supported
Cooling
3 x RS-R ARGB 120mm
Reverse-rotor intake fans in the floor, daisy-chained to PWM and 5V ARGB
3 x RS-R ARGB 120mm
Reverse-rotor intake fans in the floor, daisy-chained to PWM and 5V ARGB
Radiators
Up to 3 x 360mm
360mm top, front or bottom, plus 120mm at the rear
Up to 3 x 360mm
360mm top, front or bottom, plus 120mm at the rear
GPU clearance
Up to 360 mm
Dual airflow ducts feed cool air through the main chamber
Up to 360 mm
Dual airflow ducts feed cool air through the main chamber
CPU cooler
Up to 180 mm
Maximum air cooler height; PSU up to 200 mm long
Up to 180 mm
Maximum air cooler height; PSU up to 200 mm long
Panels
Curved glass French doors
Two hinged curved-glass doors with hidden hinges
Curved glass French doors
Two hinged curved-glass doors with hidden hinges
Front I/O
3 x USB-C + audio
1 x USB 3.2 Gen 2×2 Type-C, 2 x USB 3.2 Gen 1 Type-C, combo jack
3 x USB-C + audio
1 x USB 3.2 Gen 2×2 Type-C, 2 x USB 3.2 Gen 1 Type-C, combo jack
Warranty
2 Year Carry-In
Corsair manufacturer warranty
2 Year Carry-In
Corsair manufacturer warranty
Corsair Air 5400 RS-R ARGB Triple Chamber Mid-Tower Gaming Case (White) Specifications
| General | |
|---|---|
| Brand | Corsair |
| Model | AIR 5400 RS-R ARGB Triple Chamber Mid-Tower PC Case |
| Part number | CC-9011319-WW |
| Case type | Triple-chamber mid-tower |
| Colour | White |
| Materials | Steel, tempered glass |
| Panels | Left: dual curved tempered glass French doors; right: steel |
| Compatibility | |
| Motherboards | Mini-ITX, Micro-ATX, ATX, E-ATX (305 x 277 mm) |
| Reverse-connector motherboards | Supported (ASUS, MSI, GIGABYTE) |
| Expansion slots | 7 horizontal |
| Vertical GPU mount | Not supported |
| Max GPU length | 360 mm |
| Max CPU cooler height | 180 mm |
| Power supply | ATX, up to 200 mm (not included) |
| Cable management | RapidRoute 2.0 pegboard tray, 134 mm routing space |
| Cooling | |
| Included fans | 3 x RS-R ARGB 120mm reverse-rotor fans (pre-installed, bottom intake) |
| Lighting control | Daisy-chained fans connect to a motherboard 4-pin PWM header and +5V ARGB header |
| Top fan support | 3 x 120mm |
| Front fan support | 3 x 120mm |
| Bottom fan support | 3 x 120mm |
| Rear fan support | 1 x 120mm |
| Top radiator support | 360mm |
| Front radiator support | 240 / 360mm |
| Bottom radiator support | 240 / 360mm |
| Rear radiator support | 120mm |
| Dust filtration | Yes |
| Front Panel | |
| I/O ports | 1 x USB 3.2 Gen 2×2 Type-C, 2 x USB 3.2 Gen 1 Type-C, 1 x audio in/out combo jack |
| Motherboard connections | USB 3.2 Gen 2×2 Type-E, USB 3.2 Gen 1 20-pin, F_PANEL, HD Audio |
| Physical | |
| Dimensions (H x L x W) | 467 x 470 x 340 mm |
| Weight | 16 kg |
| In the Box and Warranty | |
| In the box | AIR 5400 RS-R case 3 x RS-R ARGB 120mm fans (pre-installed) |
| Warranty | 2 Year Corsair Carry-In |
Watch: Corsair Air 5400 RS-R ARGB Triple Chamber Mid-Tower Gaming Case (White) Review
About the Corsair Air 5400 RS-R ARGB Triple Chamber Mid-Tower Gaming Case (White)
The Corsair Air 5400 RS-R ARGB in white is a triple-chamber mid-tower for white builds that use the motherboard for fan and lighting control. Three RS-R ARGB reverse-rotor fans in the floor daisy-chain to one PWM and one 5V ARGB header. The CPU cooler sits in its own chamber, and the main chamber takes GPUs up to 360 mm with dual airflow ducts. Radiators up to 360mm fit at the top, front and bottom, and the RapidRoute 2.0 pegboard tray helps tidy cables behind E-ATX or reverse-connector boards.
