Keychron M5 Wireless Ergonomic Mouse (Black, PixArt 3311 1K) – Overview
Ergonomics
47 degree vertical design
Handshake grip with a side thumb rest to ease wrist strain
47 degree vertical design
Handshake grip with a side thumb rest to ease wrist strain
Sensor
PixArt 3311, 12000 DPI
Adjustable from 100 DPI, up to 300 IPS
PixArt 3311, 12000 DPI
Adjustable from 100 DPI, up to 300 IPS
Polling rate
1000 Hz
On the 2.4 GHz receiver or wired
1000 Hz
On the 2.4 GHz receiver or wired
Connectivity
2.4 GHz, Bluetooth 5.1, wired
Receiver with extension adapter for desktop PCs
2.4 GHz, Bluetooth 5.1, wired
Receiver with extension adapter for desktop PCs
Switches
All-silent Huano switches
Quiet clicks rated for 20 million presses
All-silent Huano switches
Quiet clicks rated for 20 million presses
Battery
600 mAh, up to 100 hours
Battery figure for Bluetooth mode
600 mAh, up to 100 hours
Battery figure for Bluetooth mode
Scrolling
Main wheel + thumb wheel
Side thumb wheel for horizontal scrolling
Main wheel + thumb wheel
Side thumb wheel for horizontal scrolling
Software
Keychron Launcher
Web app with 5 on-board profiles; no install needed
Keychron Launcher
Web app with 5 on-board profiles; no install needed
Warranty
1 Year Carry-In
Keychron manufacturer warranty
1 Year Carry-In
Keychron manufacturer warranty
Keychron M5 Wireless Ergonomic Mouse (Black, PixArt 3311 1K) Specifications
| General | |
|---|---|
| Brand | Keychron |
| Model | M5 Wireless Ergonomic Mouse |
| Part number | M5-A29 |
| EAN | 4894979049827 |
| Colour | Black |
| Version | PixArt 3311 (1K polling), all-silent micro switches |
| Sensor and Buttons | |
| Sensor | PixArt PAW3311 |
| Resolution | 100 to 12000 DPI |
| Tracking speed | Up to 300 IPS |
| Polling rate | 1000 Hz (2.4 GHz and wired) |
| Click switches | Huano silent micro switch, 20 million clicks |
| Wheels | Main scroll wheel and side thumb wheel (plastic) |
| Connectivity | |
| Wireless | 2.4 GHz receiver (USB-A) and Bluetooth 5.1 |
| Wired | USB Type-C |
| Software | Keychron Launcher web app, 5 on-board profiles |
| Power | |
| Battery | 600 mAh rechargeable |
| Battery life | Up to 100 hours (Bluetooth) |
| Physical | |
| Design | Vertical ergonomic, 47 degree angle, side thumb rest |
| Weight | 95 g |
| In the Box and Warranty | |
| In the box | Keychron M5 mouse 2.4 GHz receiver Receiver extension adapter |
| Warranty | 1 Year Keychron Carry-In |

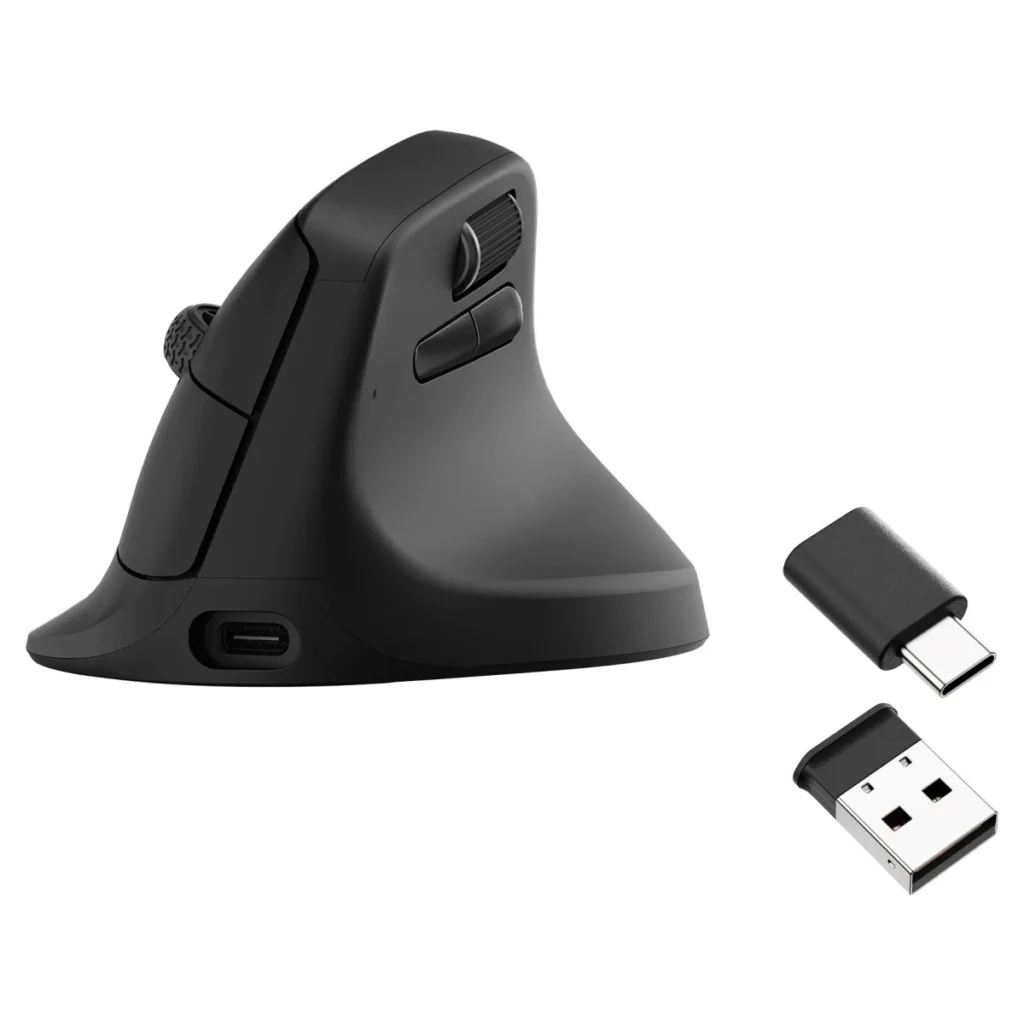

About the Keychron M5 Wireless Ergonomic Mouse (Black, PixArt 3311 1K)
The Keychron M5 is a vertical wireless mouse that holds your hand at a 47 degree angle in a handshake grip, which many people find easier on the wrist during long days at a desk. This M5-A29 version is black, with a PixArt 3311 sensor adjustable from 100 to 12000 DPI at 1000 Hz and all-silent Huano switches rated for 20 million clicks. A side thumb rest and thumb wheel add comfort and horizontal scrolling. It connects by 2.4 GHz receiver, Bluetooth 5.1 or USB-C cable, and the 600 mAh battery lasts up to 100 hours on Bluetooth.
