Thermaltake H200 TG RGB Mid-Tower Gaming Case (Black) – Overview
Form factor
ATX mid tower
Takes Mini-ITX, Micro-ATX and ATX motherboards
ATX mid tower
Takes Mini-ITX, Micro-ATX and ATX motherboards
Lighting
RGB light bar front
Front panel light bar with an RGB button on the I/O panel
RGB light bar front
Front panel light bar with an RGB button on the I/O panel
Side panel
4mm tempered glass
Left-side glass window with a built-in PSU cover
4mm tempered glass
Left-side glass window with a built-in PSU cover
Cooling
1 x 120mm rear fan
Pre-installed exhaust (1000 RPM, 16 dBA); room for 8 fans in total
1 x 120mm rear fan
Pre-installed exhaust (1000 RPM, 16 dBA); room for 8 fans in total
GPU clearance
Up to 320 mm
Seven expansion slots
Up to 320 mm
Seven expansion slots
Radiators
Up to 280mm front
Front 240 or 280mm, top 240mm
Up to 280mm front
Front 240 or 280mm, top 240mm
CPU cooler
Up to 180 mm
Maximum air cooler height
Up to 180 mm
Maximum air cooler height
Front I/O
2 x USB 3.0 + audio
HD audio and an RGB button
2 x USB 3.0 + audio
HD audio and an RGB button
Warranty
3 Year Carry-In
Thermaltake manufacturer warranty
3 Year Carry-In
Thermaltake manufacturer warranty
Thermaltake H200 TG RGB Mid-Tower Gaming Case (Black) Specifications
| General | |
|---|---|
| Brand | Thermaltake |
| Model | H200 TG RGB |
| Part number | CA-1M3-00M1WN-00 |
| Case type | Mid tower |
| Colour | Black (exterior and interior) |
| Material | SPCC steel |
| Side panel | 4mm tempered glass x 1 (left) |
| Compatibility | |
| Motherboards | Mini-ITX, Micro-ATX, ATX |
| Expansion slots | 7 |
| Power supply | Standard PS2 (ATX) PSU, not included |
| Max GPU length | 320 mm |
| Max CPU cooler height | 180 mm |
| Cooling | |
| Pre-installed fans | Rear: 1 x 120mm (1000 RPM, 16 dBA) exhaust |
| Front fan support | 3 x 120mm or 2 x 140mm |
| Top fan support | 2 x 120mm or 2 x 140mm |
| Rear fan support | 1 x 120mm or 1 x 140mm |
| Front radiator support | 240 / 280mm |
| Top radiator support | 240mm |
| Front Panel | |
| I/O ports | 2 x USB 3.0, 1 x HD Audio |
| Buttons | RGB button |
| Physical | |
| Dimensions | 454 x 210 x 416 mm |
| Weight | 7.4 kg |
| In the Box and Warranty | |
| In the box | H200 TG RGB chassis 1 x 120mm fan (pre-installed) |
| Warranty | 3 Year Thermaltake Carry-In |
About the Thermaltake H200 TG RGB Mid-Tower Gaming Case (Black)

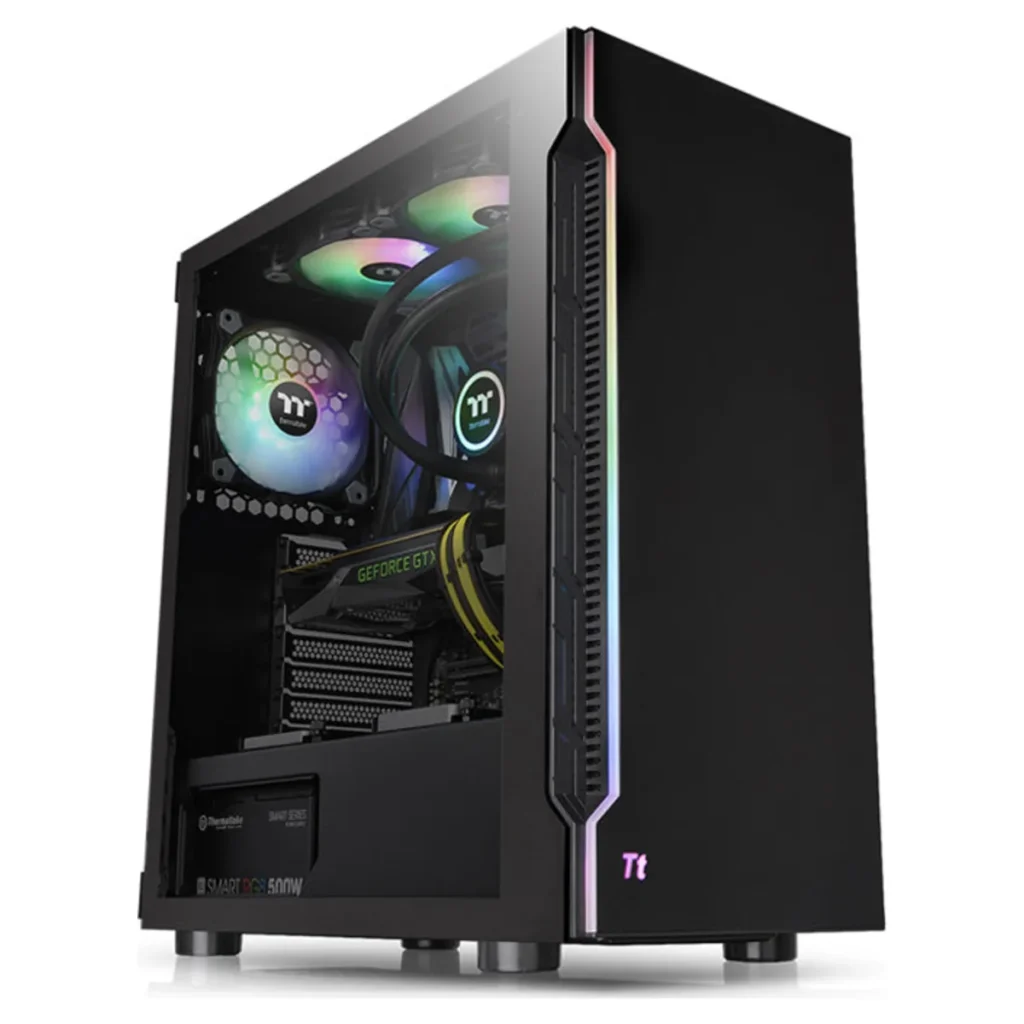

The Thermaltake H200 TG RGB is a black ATX mid tower with a clean, classic shape and an RGB light bar running across the front panel, controlled from a button on the I/O panel. A 4mm tempered glass window on the left and a built-in PSU cover keep the interior tidy. It takes graphics cards up to 320 mm and air coolers up to 180 mm tall, and the front supports a 240mm or 280mm radiator. One 120mm exhaust fan is pre-installed, with space for more at the front and top. Front I/O offers two USB 3.0 ports and HD audio. It suits entry-level gaming and home builds.
