Thermaltake S300 TG Snow Mid-Tower Gaming Case (White) – Overview
Form factor
ATX mid tower
Takes Mini-ITX, Micro-ATX and ATX motherboards
ATX mid tower
Takes Mini-ITX, Micro-ATX and ATX motherboards
Side panel
4mm tempered glass
Glass window with a built-in PSU cover
4mm tempered glass
Glass window with a built-in PSU cover
Cooling
1 x 120mm rear fan
Pre-installed exhaust (1000 RPM, 16 dBA); front takes 2 x 200mm
1 x 120mm rear fan
Pre-installed exhaust (1000 RPM, 16 dBA); front takes 2 x 200mm
Expansion
7 rotatable PCIe slots
Patented rotational slots and riser GPU bracket for vertical GPUs
7 rotatable PCIe slots
Patented rotational slots and riser GPU bracket for vertical GPUs
GPU clearance
Up to 360 mm
280 mm with a reservoir fitted
Up to 360 mm
280 mm with a reservoir fitted
Radiators
Up to 360mm
360mm front or right side, 280mm top, 140mm rear; Tt LCS certified
Up to 360mm
360mm front or right side, 280mm top, 140mm rear; Tt LCS certified
CPU cooler
Up to 170 mm
Maximum air cooler height
Up to 170 mm
Maximum air cooler height
Front I/O
USB 3.0 + 2 x USB 2.0
Plus HD audio
USB 3.0 + 2 x USB 2.0
Plus HD audio
Warranty
3 Year Carry-In
Thermaltake manufacturer warranty
3 Year Carry-In
Thermaltake manufacturer warranty
Thermaltake S300 TG Snow Mid-Tower Gaming Case (White) Specifications
| General | |
|---|---|
| Brand | Thermaltake |
| Model | S300 Tempered Glass Snow Edition Mid-Tower Chassis |
| Part number | CA-1P5-00M6WN-00 |
| Case type | Mid tower |
| Colour | White (exterior and interior) |
| Material | SPCC steel |
| Side panel | 4mm tempered glass x 1 |
| Compatibility | |
| Motherboards | Mini-ITX, Micro-ATX, ATX |
| Expansion slots | 7 (patented rotational design) |
| Power supply | Standard PS2 (ATX) PSU, not included; up to 200 mm long |
| Max GPU length | 360 mm without reservoir, 280 mm with reservoir |
| Max CPU cooler height | 170 mm |
| Cooling | |
| Pre-installed fans | Rear: 1 x 120mm (1000 RPM, 16 dBA) exhaust |
| Front fan support | 3 x 120mm, 3 x 140mm or 2 x 200mm |
| Top fan support | 3 x 120mm, 2 x 140mm or 1 x 200mm |
| Rear fan support | 1 x 120mm or 1 x 140mm |
| Front radiator support | 280 / 360mm |
| Top radiator support | 240 / 280mm |
| Rear radiator support | 120 / 140mm |
| Right radiator support | 360mm (without HDD rack) |
| Front Panel | |
| I/O ports | 1 x USB 3.0, 2 x USB 2.0, 1 x HD Audio |
| Physical | |
| Dimensions | 493 x 230 x 508 mm |
| Weight | 11.05 kg |
| In the Box and Warranty | |
| In the box | S300 TG Snow chassis 1 x 120mm fan (pre-installed) |
| Warranty | 3 Year Thermaltake Carry-In |
About the Thermaltake S300 TG Snow Mid-Tower Gaming Case (White)

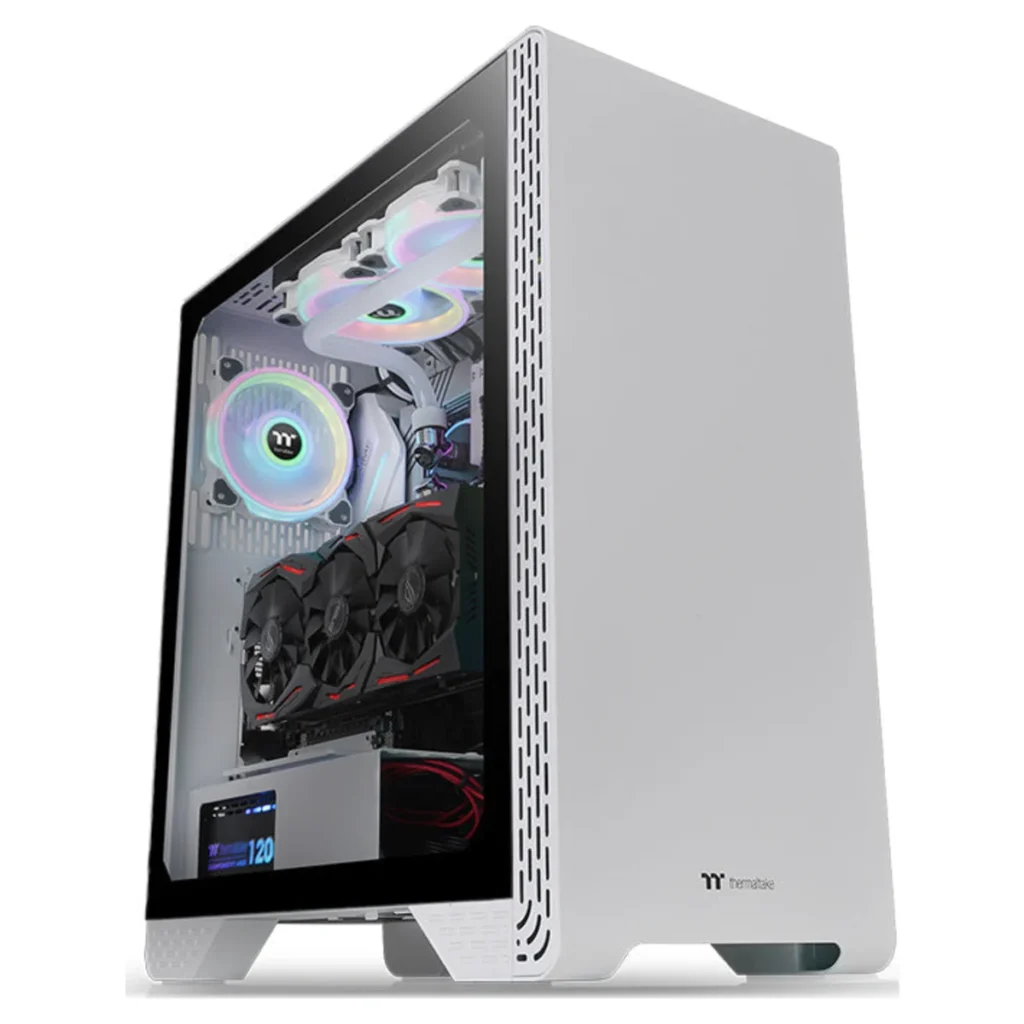

The Thermaltake S300 TG Snow is an ATX mid tower finished in white inside and out, suited to liquid-cooled or showcase builds. A 4mm tempered glass window and built-in PSU cover keep the interior on display, while Thermaltake’s patented rotational PCIe slots and a riser GPU bracket allow a vertically mounted graphics card. Radiators up to 360mm fit at the front or on the right side, and the front can also take two 200mm fans. Graphics cards up to 360 mm and air coolers up to 170 mm fit, and one 120mm exhaust fan is included. Front I/O offers one USB 3.0 port, two USB 2.0 ports and HD audio.
