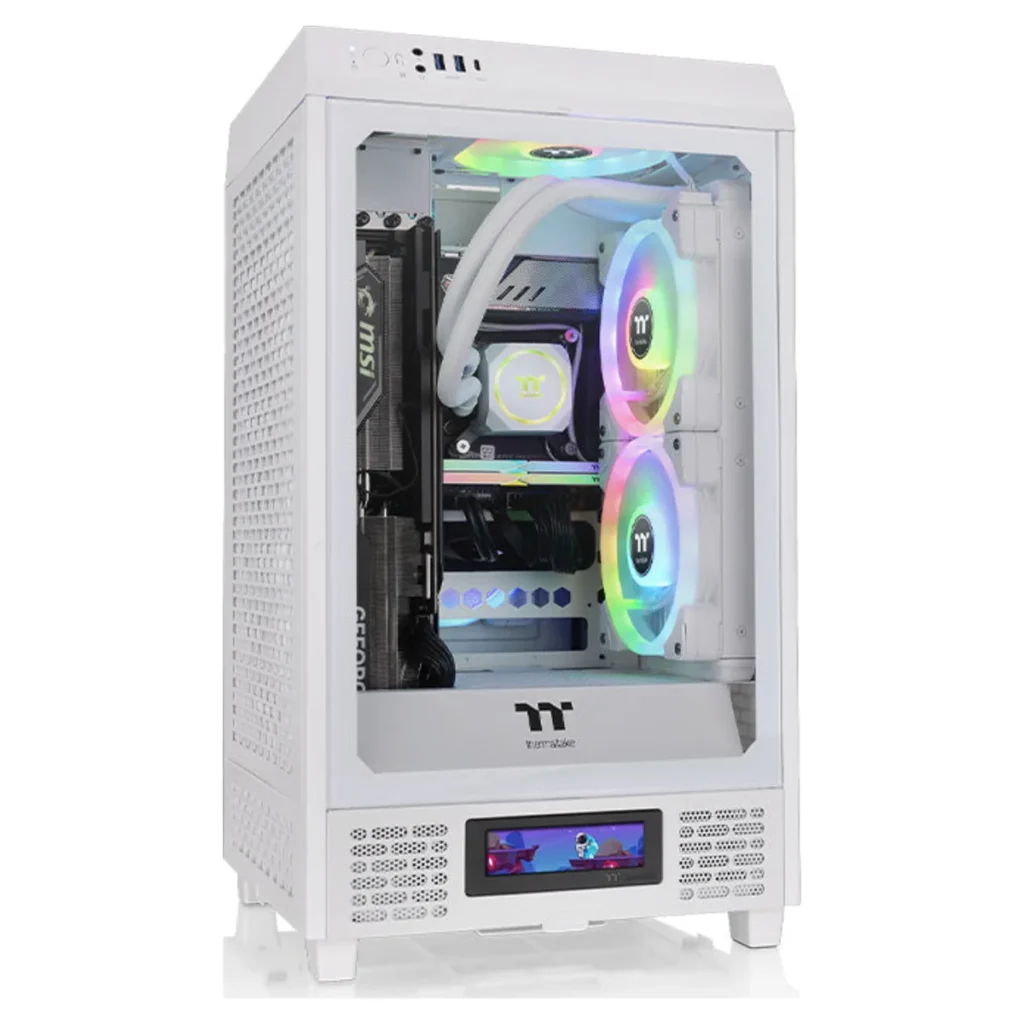

Thermaltake The Tower 200 Snow Mini-ITX Mini-Tower Gaming Case (White) – Overview
Form factor
Mini-ITX mini tower
Vertical layout with the motherboard I/O facing up
Mini-ITX mini tower
Vertical layout with the motherboard I/O facing up
Cooling
2 x CT140 140mm fans
Pre-installed top and rear exhaust fans, 1500 RPM, 30.5 dBA
2 x CT140 140mm fans
Pre-installed top and rear exhaust fans, 1500 RPM, 30.5 dBA
GPU clearance
Up to 380 mm
280 mm with the power cover fitted
Up to 380 mm
280 mm with the power cover fitted
Radiators
Up to 280mm on the side
Right side takes a 120/140/240/280mm AIO; top takes 120 or 140mm
Up to 280mm on the side
Right side takes a 120/140/240/280mm AIO; top takes 120 or 140mm
CPU cooler
Up to 200 mm
Maximum air cooler height
Up to 200 mm
Maximum air cooler height
Power supply
Standard ATX (PS2) PSU
Up to 220 mm long, not included
Standard ATX (PS2) PSU
Up to 220 mm long, not included
Side panel
3mm tempered glass
Glass panel to show off the build
3mm tempered glass
Glass panel to show off the build
Front I/O
USB-C + 2 x USB 3.0
USB 3.2 Gen 2 Type-C, two USB 3.0 and HD audio
USB-C + 2 x USB 3.0
USB 3.2 Gen 2 Type-C, two USB 3.0 and HD audio
Warranty
3 Year Carry-In
Thermaltake manufacturer warranty
3 Year Carry-In
Thermaltake manufacturer warranty
Thermaltake The Tower 200 Snow Mini-ITX Mini-Tower Gaming Case (White) Specifications
| General | |
|---|---|
| Brand | Thermaltake |
| Model | The Tower 200 Snow Mini Chassis |
| Part number | CA-1X9-00S6WN-00 |
| Case type | Mini tower |
| Colour | White |
| Material | SPCC steel |
| Side panel | 3mm tempered glass x 1 |
| Compatibility | |
| Motherboards | Mini-ITX (6.7″ x 6.7″) |
| Expansion slots | 3 |
| Drive bays | 2 x 3.5″ + 2 x 2.5″, or 4 x 2.5″ |
| Power supply | Standard PS2 (ATX) PSU, not included; up to 220 mm long |
| Max GPU length | 380 mm without power cover, 280 mm with power cover |
| Max CPU cooler height | 200 mm |
| Cooling | |
| Pre-installed fans | Top: 1 x CT140 140mm (1500 RPM, 30.5 dBA) exhaust; Rear: 1 x CT140 140mm (1500 RPM, 30.5 dBA) exhaust |
| Top fan support | 1 x 120mm or 1 x 140mm |
| Right side fan support | 2 x 120mm or 2 x 140mm |
| Rear fan support | 2 x 120mm or 2 x 140mm |
| Power cover fan support | 1 x 120mm or 1 x 140mm |
| Top radiator support | 120 / 140mm |
| Right side radiator support (AIO) | 120 / 140 / 240 / 280mm |
| Front Panel | |
| I/O ports | 1 x USB 3.2 Gen 2 Type-C, 2 x USB 3.0, 1 x HD Audio |
| Physical | |
| Dimensions | 537 x 300 x 280 mm |
| Weight | 7.7 kg |
| In the Box and Warranty | |
| In the box | The Tower 200 Snow Mini Chassis chassis 2 x CT140 140mm fans (pre-installed) |
| Warranty | 3 Year Thermaltake Carry-In |
Watch: Thermaltake The Tower 200 Snow Mini-ITX Mini-Tower Gaming Case (White) Review
About the Thermaltake The Tower 200 Snow Mini-ITX Mini-Tower Gaming Case (White)
The Thermaltake The Tower 200 Snow is the white edition of Thermaltake’s vertical Mini-ITX mini tower, finished in white. The vertical layout points the motherboard I/O upwards and shows the build through tempered glass. It accepts graphics cards up to 380 mm long (280 mm with the power cover fitted), air coolers up to 200 mm tall, a standard ATX PSU up to 220 mm and a 280mm AIO on the right side. Front I/O covers USB 3.2 Gen 2 Type-C, two USB 3.0 ports and HD audio, making it a good fit for a clean white small-form-factor gaming build.
