Thermaltake The Tower 300 Micro-ATX Mini-Tower Gaming Case (Black) – Overview
Form factor
Micro-ATX micro tower
Vertical layout for Mini-ITX and Micro-ATX motherboards
Micro-ATX micro tower
Vertical layout for Mini-ITX and Micro-ATX motherboards
Cooling
2 x CT140 140mm fans
Pre-installed top exhaust fans, 1500 RPM, 30.5 dBA
2 x CT140 140mm fans
Pre-installed top exhaust fans, 1500 RPM, 30.5 dBA
Radiators
Up to 420mm on the side
Right side takes 120/140/240/280/360/420mm AIO radiators
Up to 420mm on the side
Right side takes 120/140/240/280/360/420mm AIO radiators
GPU clearance
Up to 400 mm
280 mm with the power cover fitted
Up to 400 mm
280 mm with the power cover fitted
CPU cooler
Up to 210 mm
Maximum air cooler height
Up to 210 mm
Maximum air cooler height
Glass
3 x 3mm tempered glass
Three glass panels for a wide view of the build
3 x 3mm tempered glass
Three glass panels for a wide view of the build
Storage
3 x 3.5″ or 3 x 2.5″
Three drive positions for HDDs or SSDs
3 x 3.5″ or 3 x 2.5″
Three drive positions for HDDs or SSDs
Front I/O
USB-C + 2 x USB 3.0
USB 3.2 Gen 2 Type-C, two USB 3.0 and HD audio
USB-C + 2 x USB 3.0
USB 3.2 Gen 2 Type-C, two USB 3.0 and HD audio
Warranty
3 Year Carry-In
Thermaltake manufacturer warranty
3 Year Carry-In
Thermaltake manufacturer warranty
Thermaltake The Tower 300 Micro-ATX Mini-Tower Gaming Case (Black) Specifications
| General | |
|---|---|
| Brand | Thermaltake |
| Model | The Tower 300 Micro Tower Chassis |
| Part number | CA-1Y4-00S1WN-00 |
| Case type | Micro tower |
| Colour | Black |
| Material | SPCC steel |
| Side panels | 3mm tempered glass x 3 |
| Compatibility | |
| Motherboards | Mini-ITX (6.7″ x 6.7″), Micro-ATX (9.6″ x 9.6″) |
| Expansion slots | 4 |
| Drive bays | 3 x 3.5″ or 3 x 2.5″ |
| Power supply | Standard PS2 (ATX) PSU, not included; up to 220 mm long |
| Max GPU length | 400 mm without power cover, 280 mm with power cover |
| Max CPU cooler height | 210 mm |
| Cooling | |
| Pre-installed fans | Top: 2 x CT140 140mm (1500 RPM, 30.5 dBA) exhaust |
| Top fan support | 2 x 120mm or 2 x 140mm |
| Right side fan support | 3 x 120mm or 3 x 140mm |
| Rear fan support | 2 x 120mm or 2 x 140mm |
| Power cover fan support | 1 x 120mm or 1 x 140mm |
| Right side radiator support (AIO) | 120 / 140 / 240 / 280 / 360 / 420mm |
| Front Panel | |
| I/O ports | 1 x USB 3.2 Gen 2 Type-C, 2 x USB 3.0, 1 x HD Audio |
| Physical | |
| Dimensions | 551 x 342 x 281 mm |
| Weight | 8.3 kg |
| In the Box and Warranty | |
| In the box | The Tower 300 Micro Tower Chassis 2 x CT140 140mm fans (pre-installed) |
| Warranty | 3 Year Thermaltake Carry-In |
Watch: Thermaltake The Tower 300 Micro-ATX Mini-Tower Gaming Case (Black) Review
About the Thermaltake The Tower 300 Micro-ATX Mini-Tower Gaming Case (Black)

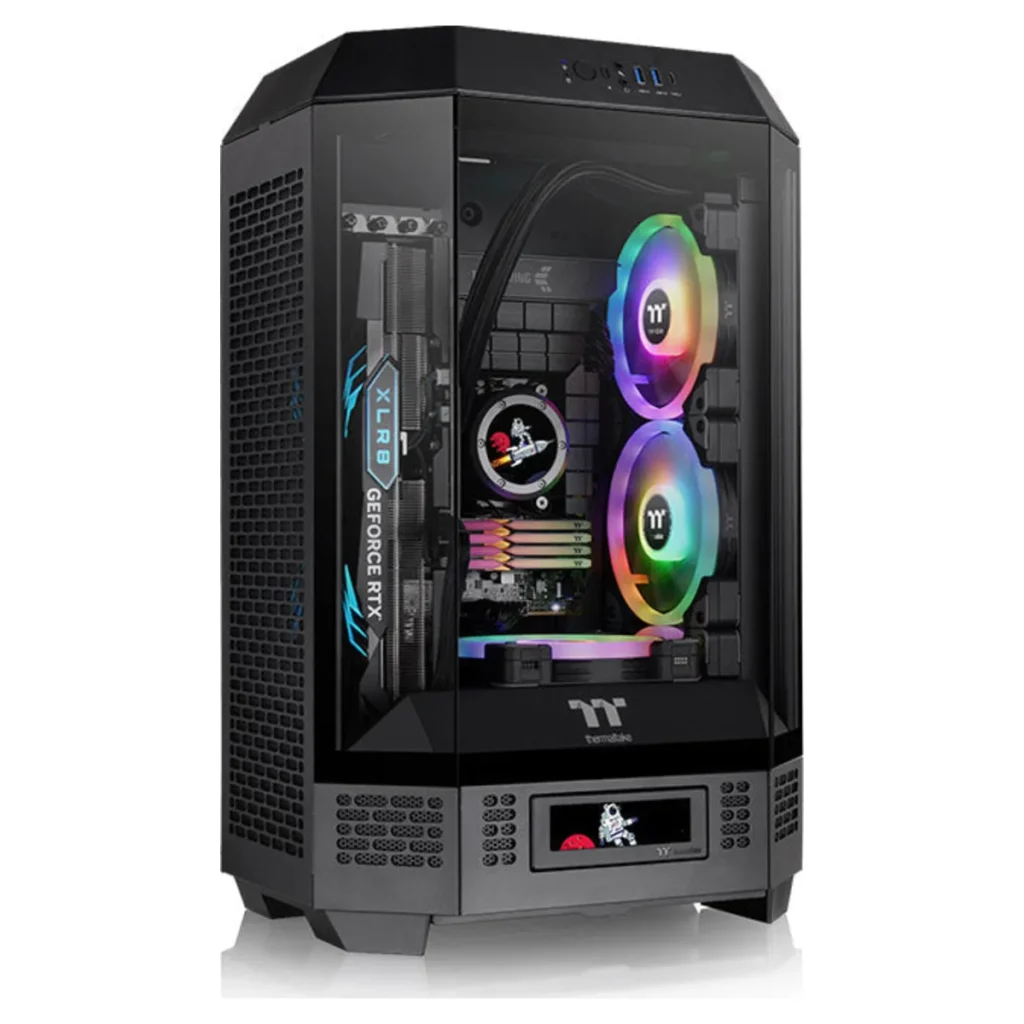

The Thermaltake The Tower 300 is a black Micro-ATX micro tower with a vertical layout, so the motherboard I/O faces upwards and the hardware is on show behind three 3mm tempered glass panels. It supports Mini-ITX and Micro-ATX boards, graphics cards up to 400 mm, air coolers up to 210 mm tall and an AIO radiator of up to 420mm on the right side. Two CT140 140mm fans are fitted as top exhaust. Front I/O includes USB 3.2 Gen 2 Type-C, two USB 3.0 ports and HD audio. An optional stand kit lets the case lie on its side for a horizontal display.
