Thermaltake View 270 TG ARGB Mid-Tower Gaming Case (Black) – Overview
Form factor
E-ATX mid tower
Takes Mini-ITX, Micro-ATX, ATX and E-ATX motherboards
E-ATX mid tower
Takes Mini-ITX, Micro-ATX, ATX and E-ATX motherboards
Glass
Front and left glass panels
Two tempered glass panels for a panoramic view of the build
Front and left glass panels
Two tempered glass panels for a panoramic view of the build
Cooling
1 x CT140 ARGB fan
Pre-installed rear exhaust, 1500 RPM, 30.5 dBA
1 x CT140 ARGB fan
Pre-installed rear exhaust, 1500 RPM, 30.5 dBA
Fan mounts
Side and PSU cover intakes
2 x 120mm on the motherboard side and 3 x 120mm on the PSU cover
Side and PSU cover intakes
2 x 120mm on the motherboard side and 3 x 120mm on the PSU cover
GPU clearance
Up to 420 mm
Seven expansion slots
Up to 420 mm
Seven expansion slots
Radiators
Up to 360mm top
Top 120/240/360mm, rear 120mm
Up to 360mm top
Top 120/240/360mm, rear 120mm
CPU cooler
Up to 180 mm
Maximum air cooler height
Up to 180 mm
Maximum air cooler height
Front I/O
USB-C + 2 x USB 3.0
USB 3.2 Gen 2 Type-C, two USB 3.0 and HD audio
USB-C + 2 x USB 3.0
USB 3.2 Gen 2 Type-C, two USB 3.0 and HD audio
Warranty
3 Year Carry-In
Thermaltake manufacturer warranty
3 Year Carry-In
Thermaltake manufacturer warranty
Thermaltake View 270 TG ARGB Mid-Tower Gaming Case (Black) Specifications
| General | |
|---|---|
| Brand | Thermaltake |
| Model | View 270 TG ARGB Mid Tower Chassis |
| Part number | CA-1Y7-00M1WN-00 |
| Case type | Mid tower |
| Colour | Black |
| Material | SPCC steel |
| Glass panels | Tempered glass x 2 (front and left) |
| Compatibility | |
| Motherboards | Mini-ITX, Micro-ATX, ATX, E-ATX (12″ x 13″) |
| Expansion slots | 7 |
| Drive bays | 2 x 3.5″, 1 x 2.5″ or 2 x 2.5″ (as listed by Thermaltake) |
| Power supply | Standard PS2 (ATX) PSU, not included; up to 220 mm long |
| Max GPU length | 420 mm |
| Max CPU cooler height | 180 mm |
| Cooling | |
| Pre-installed fans | Rear: 1 x CT140 ARGB 140mm (1500 RPM, 30.5 dBA) exhaust |
| Top fan support | 3 x 120mm or 2 x 140mm |
| Right (motherboard side) fan support | 2 x 120mm |
| Rear fan support | 1 x 120mm or 1 x 140mm |
| Power cover fan support | 3 x 120mm |
| Top radiator support | 120 / 240 / 360mm |
| Rear radiator support | 120mm |
| Lighting | ARGB fan, sync with motherboard RGB software |
| Front Panel | |
| I/O ports | 1 x USB 3.2 Gen 2 Type-C, 2 x USB 3.0, 1 x HD Audio |
| Physical | |
| Dimensions | 456 x 230 x 454 mm |
| Weight | 6.3 kg |
| In the Box and Warranty | |
| In the box | View 270 TG ARGB Mid Tower Chassis chassis 1 x CT140 ARGB 140mm fan (pre-installed) |
| Warranty | 3 Year Thermaltake Carry-In |
About the Thermaltake View 270 TG ARGB Mid-Tower Gaming Case (Black)

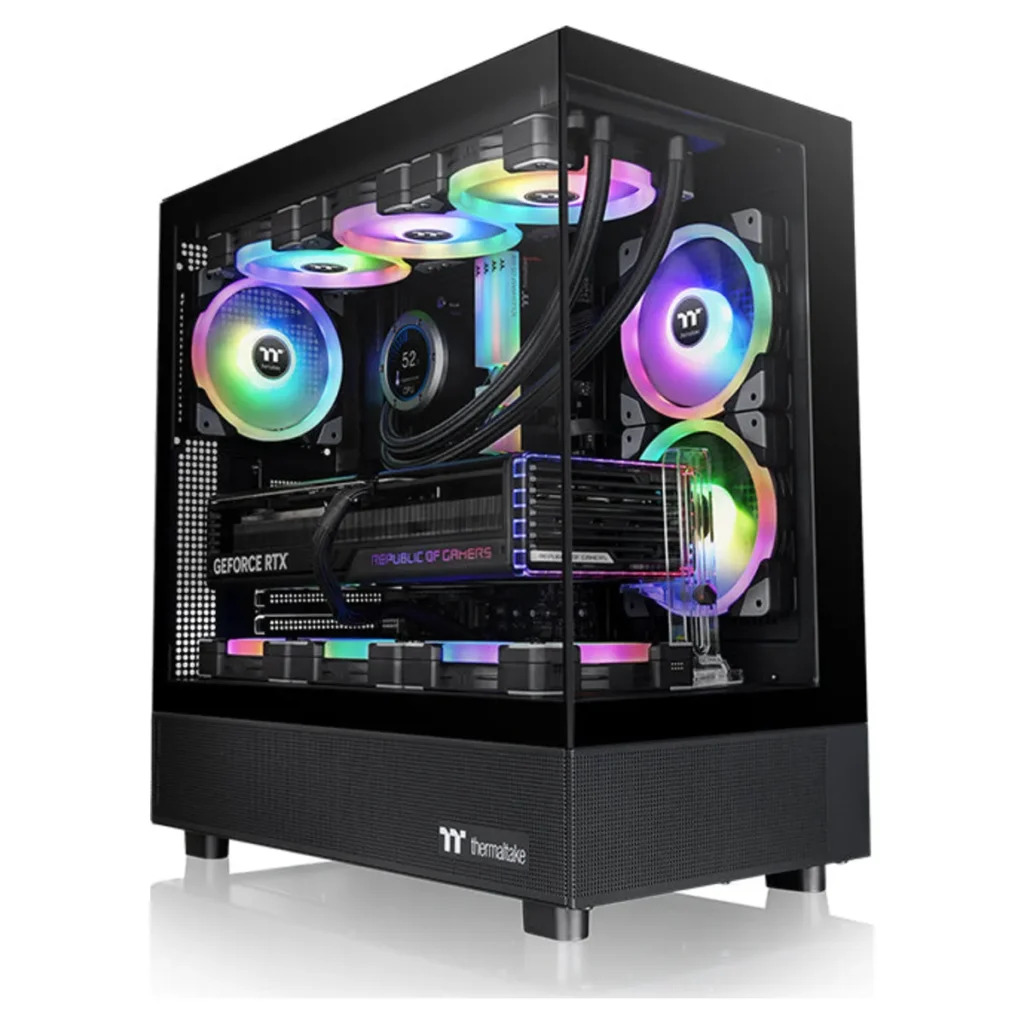

The Thermaltake View 270 TG ARGB is a black E-ATX mid tower with tempered glass on the front and left side, giving an uninterrupted corner view of the build. Because the front is glass, cooling is fed from the motherboard side and the PSU cover, which take two and three 120mm fans respectively, while the top fits a 360mm radiator. One CT140 ARGB fan is pre-installed as rear exhaust. Graphics cards up to 420 mm and air coolers up to 180 mm fit, and a built-in PSU cover hides cabling. Front I/O includes USB 3.2 Gen 2 Type-C. It suits showcase gaming builds with plenty of RGB.
