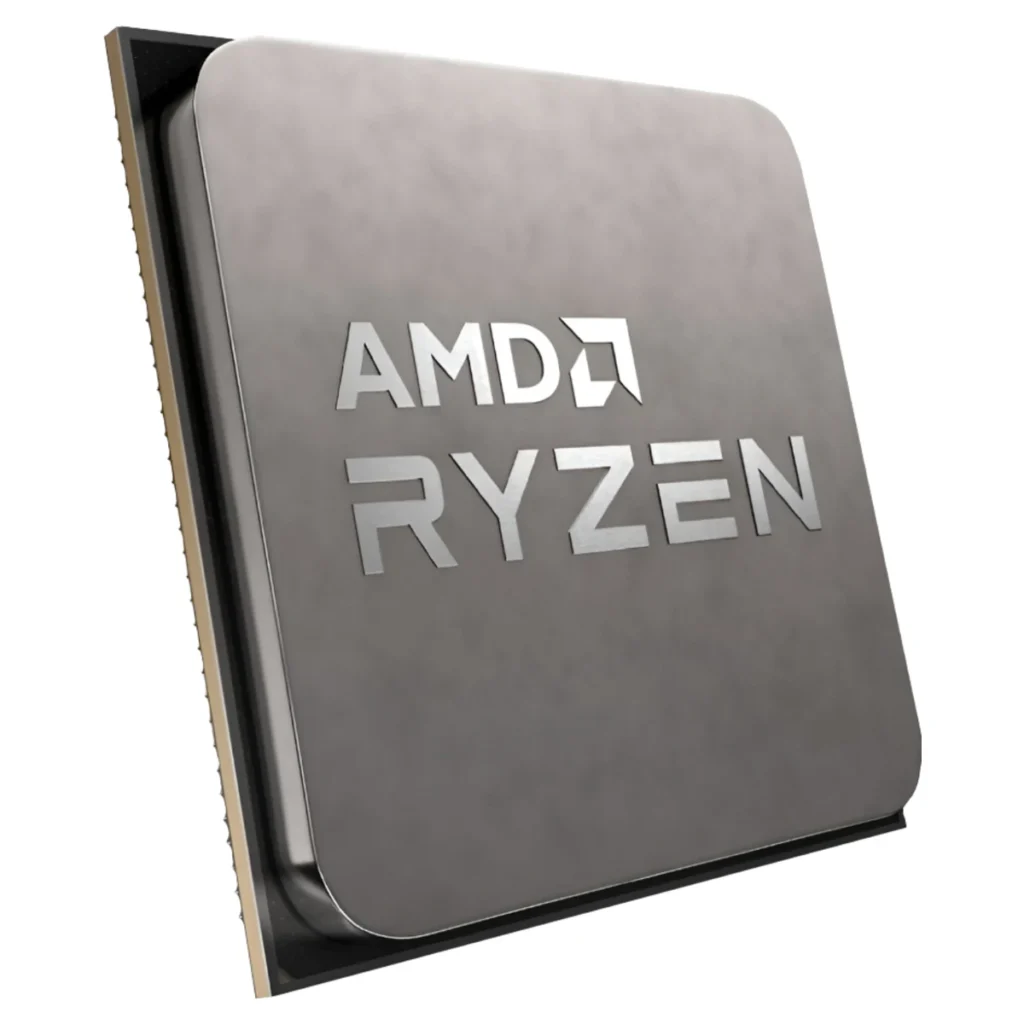

AMD Ryzen 7 5700G Processor with Radeon Graphics (MPK) – Overview
Cores / threads
8 cores, 16 threads
Zen 3 architecture with simultaneous multithreading
8 cores, 16 threads
Zen 3 architecture with simultaneous multithreading
Clock speed
Up to 4.6GHz boost
3.8GHz base clock, unlocked for overclocking
Up to 4.6GHz boost
3.8GHz base clock, unlocked for overclocking
Cache
20MB L2 + L3
4MB L2 and 16MB L3 cache
20MB L2 + L3
4MB L2 and 16MB L3 cache
Graphics
Radeon Graphics, 8 cores
Built-in GPU drives a display without a graphics card
Radeon Graphics, 8 cores
Built-in GPU drives a display without a graphics card
TDP
65W
Built on a TSMC 7nm FinFET process
65W
Built on a TSMC 7nm FinFET process
Socket
AM4
Uses DDR4 memory on AM4 motherboards
AM4
Uses DDR4 memory on AM4 motherboards
Expansion
PCIe 3.0
PCIe 3.0 lanes for a graphics card and NVMe storage
PCIe 3.0
PCIe 3.0 lanes for a graphics card and NVMe storage
Cooler
AMD Wraith Stealth
Stock air cooler included in the MPK pack
AMD Wraith Stealth
Stock air cooler included in the MPK pack
Warranty
3 Year Carry-In
AMD manufacturer warranty, supplied as MPK
3 Year Carry-In
AMD manufacturer warranty, supplied as MPK
AMD Ryzen 7 5700G Processor with Radeon Graphics (MPK) Specifications
| General | |
|---|---|
| Brand | AMD |
| Model | Ryzen 7 5700G |
| Part number (MPK) | 100-100000263MPK |
| Boxed part number | 100-100000263BOX |
| Packaging | MPK (multi-pack), with Wraith Stealth cooler |
| Processor | |
| Architecture | Zen 3 |
| Cores | 8 |
| Threads | 16 |
| Base clock | 3.8GHz |
| Max boost clock | Up to 4.6GHz |
| L2 cache | 4MB |
| L3 cache | 16MB |
| Process | TSMC 7nm FinFET |
| Unlocked for overclocking | Yes |
| Default TDP | 65W |
| Platform and Graphics | |
| Socket | AM4 |
| PCI Express | PCIe 3.0 |
| Memory | DDR4 (AM4 platform) |
| Integrated graphics | AMD Radeon Graphics, 8 GPU cores |
| In the Box and Warranty | |
| In the box | AMD Ryzen 7 5700G processor AMD Wraith Stealth CPU cooler |
| Warranty | 3 Year AMD Carry-In |
About the AMD Ryzen 7 5700G Processor with Radeon Graphics (MPK)
The AMD Ryzen 7 5700G is an eight-core, sixteen-thread AM4 processor that pairs Zen 3 CPU cores with eight-core Radeon graphics on the same chip. That makes it a good fit for home office PCs, small form factor builds and entry-level gaming systems that need to run without a graphics card, with the option to add one later. It boosts up to 4.6GHz, has 16MB of L3 cache and a 65W TDP. This MPK version includes AMD’s Wraith Stealth cooler in the pack.
