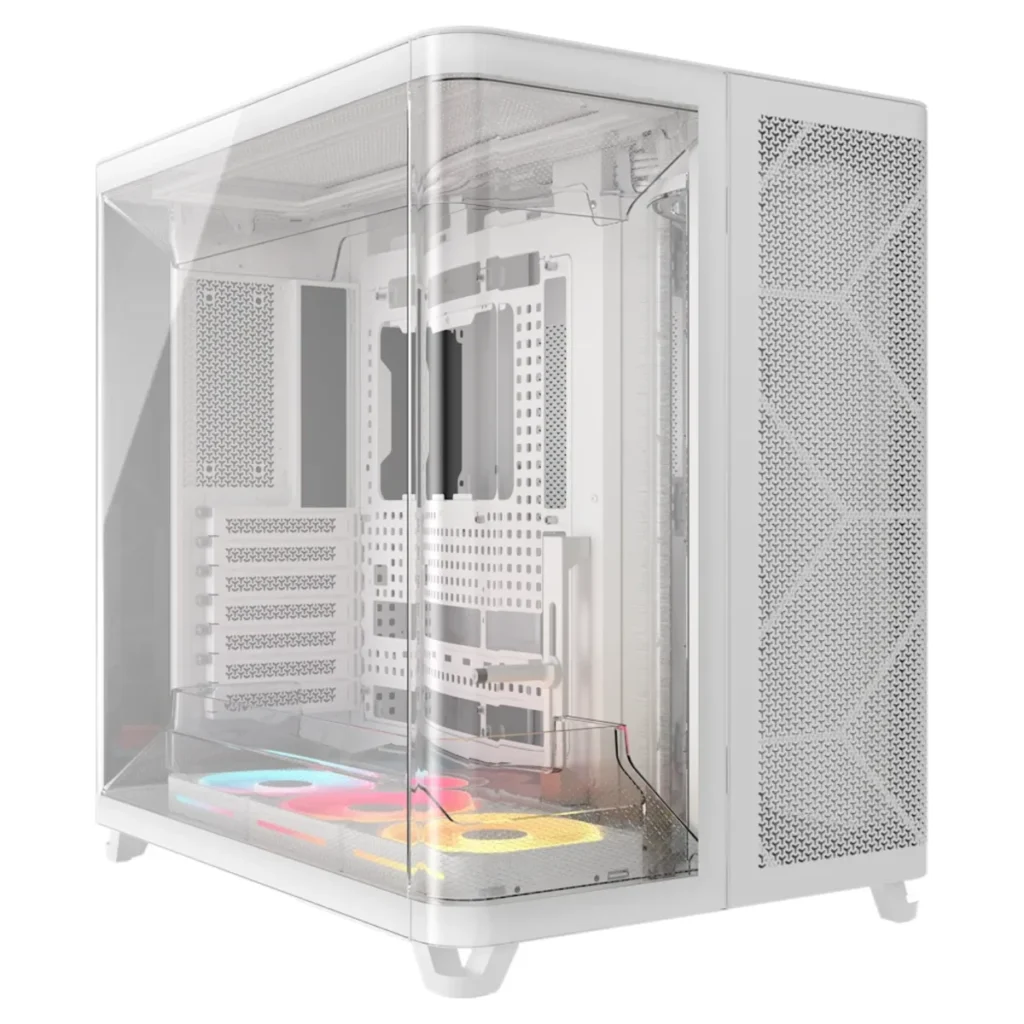

Corsair Air 5400 LX-R RGB iCUE LINK Triple Chamber Mid-Tower Gaming Case (White) – Overview
Design
Triple-chamber mid-tower
Separate chamber for the CPU cooler, isolated from GPU and PSU heat
Triple-chamber mid-tower
Separate chamber for the CPU cooler, isolated from GPU and PSU heat
Form factor
Up to E-ATX
Mini-ITX to E-ATX (305 x 277 mm), reverse-connector boards supported
Up to E-ATX
Mini-ITX to E-ATX (305 x 277 mm), reverse-connector boards supported
Cooling
3 x iCUE LINK LX-R RGB
Reverse-rotor 120mm fans in the floor, with iCUE LINK System Hub
3 x iCUE LINK LX-R RGB
Reverse-rotor 120mm fans in the floor, with iCUE LINK System Hub
Radiators
Up to 3 x 360mm
360mm top, front or bottom, plus 120mm at the rear
Up to 3 x 360mm
360mm top, front or bottom, plus 120mm at the rear
GPU clearance
Up to 360 mm
Dual airflow ducts feed cool air through the main chamber
Up to 360 mm
Dual airflow ducts feed cool air through the main chamber
CPU cooler
Up to 180 mm
Maximum air cooler height; PSU up to 200 mm long
Up to 180 mm
Maximum air cooler height; PSU up to 200 mm long
Panels
Curved glass French doors
Two hinged curved-glass doors with hidden hinges
Curved glass French doors
Two hinged curved-glass doors with hidden hinges
Front I/O
3 x USB-C + audio
1 x USB 3.2 Gen 2×2 Type-C, 2 x USB 3.2 Gen 1 Type-C, combo jack
3 x USB-C + audio
1 x USB 3.2 Gen 2×2 Type-C, 2 x USB 3.2 Gen 1 Type-C, combo jack
Warranty
2 Year Carry-In
Corsair manufacturer warranty
2 Year Carry-In
Corsair manufacturer warranty
Corsair Air 5400 LX-R RGB iCUE LINK Triple Chamber Mid-Tower Gaming Case (White) Specifications
| General | |
|---|---|
| Brand | Corsair |
| Model | AIR 5400 LX-R RGB iCUE LINK Triple Chamber Mid-Tower PC Case |
| Part number | CC-9011321-WW |
| Case type | Triple-chamber mid-tower |
| Colour | White |
| Materials | Steel, tempered glass |
| Panels | Left: dual curved tempered glass French doors; right: steel |
| Compatibility | |
| Motherboards | Mini-ITX, Micro-ATX, ATX, E-ATX (305 x 277 mm) |
| Reverse-connector motherboards | Supported (ASUS, MSI, GIGABYTE) |
| Expansion slots | 7 horizontal |
| Vertical GPU mount | Not supported |
| Max GPU length | 360 mm |
| Max CPU cooler height | 180 mm |
| Power supply | ATX, up to 200 mm (not included) |
| Cable management | RapidRoute 2.0 pegboard tray, 134 mm routing space |
| Cooling | |
| Included fans | 3 x iCUE LINK LX-R RGB 120mm reverse-rotor fans (pre-installed, bottom intake) |
| Lighting control | iCUE LINK System Hub included (up to 24 iCUE LINK devices), CORSAIR iCUE software |
| Top fan support | 3 x 120mm |
| Front fan support | 3 x 120mm |
| Bottom fan support | 3 x 120mm |
| Rear fan support | 1 x 120mm |
| Top radiator support | 360mm |
| Front radiator support | 240 / 360mm |
| Bottom radiator support | 240 / 360mm |
| Rear radiator support | 120mm |
| Dust filtration | Yes |
| Front Panel | |
| I/O ports | 1 x USB 3.2 Gen 2×2 Type-C, 2 x USB 3.2 Gen 1 Type-C, 1 x audio in/out combo jack |
| Motherboard connections | USB 3.2 Gen 2×2 Type-E, USB 3.2 Gen 1 20-pin, F_PANEL, HD Audio |
| Physical | |
| Dimensions (H x L x W) | 467 x 470 x 340 mm |
| Weight | 16 kg |
| In the Box and Warranty | |
| In the box | AIR 5400 LX-R case 3 x iCUE LINK LX-R RGB 120mm fans (pre-installed) iCUE LINK System Hub QuikTurn fan screws Microfibre cloth |
| Warranty | 2 Year Corsair Carry-In |
Watch: Corsair Air 5400 LX-R RGB iCUE LINK Triple Chamber Mid-Tower Gaming Case (White) Review
About the Corsair Air 5400 LX-R RGB iCUE LINK Triple Chamber Mid-Tower Gaming Case (White)
The Corsair Air 5400 LX-R RGB iCUE LINK in white is a triple-chamber mid-tower for white-themed builds that want strong cooling and a single-hub lighting setup. The CPU cooler sits in its own chamber, while dual ducts push air through the main GPU chamber. Three iCUE LINK LX-R RGB reverse-rotor fans and the iCUE LINK System Hub are included, and there is room for 360mm radiators at the top, front and bottom. E-ATX and reverse-connector motherboards fit, with GPUs up to 360 mm and CPU coolers up to 180 mm.
