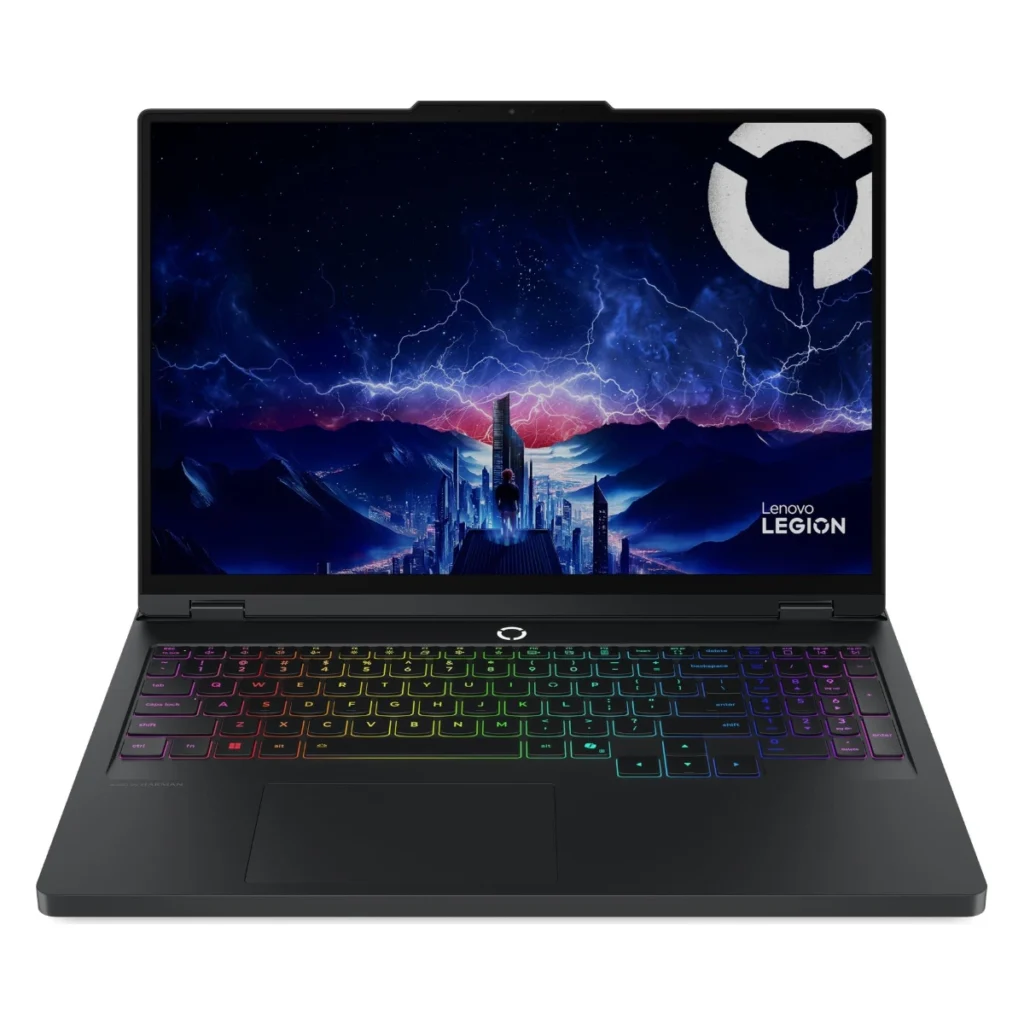

Lenovo Legion Pro 5 16IAX10 – Overview
- Processor: Intel Core Ultra 9 275HX – 24 cores (8P + 16E), 24 threads, up to 5.4GHz, 36MB cache
- AI Engine: Intel AI Boost, up to 13 TOPS
- Graphics: NVIDIA GeForce RTX 5060 8GB GDDR7
- Memory: 32GB DDR5-5600 (2x 16GB SO-DIMM)
- Storage: 1TB M.2 2280 PCIe 4.0 NVMe SSD
- Display: 16″ WQXGA (2560 x 1600), OLED, 500 nits, glossy, 165Hz
- Connectivity: Wi-Fi 7 (802.11be) + Bluetooth 5.4
- Operating System: Windows 11 Pro
- Warranty: 3 Year Courier or Carry-In Warranty
Lenovo Legion Pro 5 16IAX10 (83F3006YSA) Specifications
| General | |
|---|---|
| Brand | Lenovo |
| Model | Lenovo Legion Pro 5 16IAX10 |
| Part Number | 83F3006YSA |
| EAN | 199272762331 |
| Colour | Eclipse Black |
| Operating System | Windows 11 Pro |
| Performance | |
| Processor | Intel Core Ultra 9 275HX, 24C (8P + 16E) / 24T, Max Turbo up to 5.4GHz, 36MB Intel Smart Cache |
| AI Engine (NPU) | Intel AI Boost, up to 13 TOPS |
| Graphics | NVIDIA GeForce RTX 5060 8GB GDDR7 |
| Memory | 2x 16GB SODIMM DDR5-5600 |
| Memory Slots | Two DDR5 SODIMM slots, dual-channel capable |
| Storage | 1TB SSD M.2 2280 PCIe 4.0×4 NVMe |
| Storage Slots | Two M.2 2280 PCIe 4.0 x4 slots |
| Maximum Storage | Up to two drives, 2x M.2 SSD • M.2 2242 SSD up to 1TB • M.2 2280 SSD up to 1TB |
| Display | |
| Screen | 16″ WQXGA (2560×1600) OLED 500nits (typical) / 1100nits (peak) Glossy, 100% DCI-P3, 165Hz, DisplayHDR True Black 1000, Dolby Vision, G-SYNC, Low Blue Light, High Gaming Performance, Flicker Free |
| Touchscreen | No |
| Audio & Camera | |
| Camera | 5.0MP with E-shutter |
| Speakers | Stereo speakers, 2W x2, audio by HARMAN, optimized with Nahimic Audio |
| Microphone | 2x, Array |
| Input | |
| Keyboard | 24-Zone RGB Backlit, English |
| Fingerprint Reader | No Fingerprint Reader |
| Connectivity | |
| Wi-Fi & Bluetooth | Wi-Fi 7, 802.11be 2×2 + BT5.4 |
| Ethernet | 100/1000M (RJ-45) |
| Ports | 2x USB-A (USB 5Gbps / USB 3.2 Gen 1) 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), Always On 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with USB PD 65-100W and DisplayPort 2.1 1x USB-C (Thunderbolt 4 / USB4 40Gbps), with DisplayPort 2.1 1x HDMI 2.1, up to 8K/60Hz 1x Headphone / microphone combo jack (3.5mm) 1x Ethernet (RJ-45) 1x Slim tip (rectangle) power connector |
| Card Reader | No Card Reader |
| Security | |
| Security Chip | Firmware TPM 2.0 Enabled |
| Power & Physical | |
| Battery | 80Wh |
| Power Adapter | 245W Slim Tip (3-pin) |
| Dimensions (W x D x H) | 364.38 x 268.06 x 21.69-25.95 mm |
| Weight | Around 2.43 kg |
| In the Box | |
| Contents | Lenovo Legion Pro 5 16IAX10 laptop 245W Slim Tip (3-pin) power adapter |
| Warranty | |
| Warranty | 3 Year Courier or Carry-In Warranty |
About the Lenovo Legion Pro 5 16IAX10
The Lenovo Legion Pro 5 16IAX10 (83F3006YSA) combines an Intel Core Ultra 9 275HX processor with 32GB of DDR5 memory and a 1TB PCIe 4.0 NVMe SSD, driving a 16-inch WQXGA (2560 x 1600) OLED display with a 165Hz refresh rate. It features NVIDIA GeForce RTX 5060 8GB graphics, Wi-Fi 7 and Bluetooth 5.4, and ships with Windows 11 Pro. Finished in Eclipse Black, it is designed for gamers and creators who need dedicated graphics power. It is backed by a 3-year courier or carry-in warranty.
