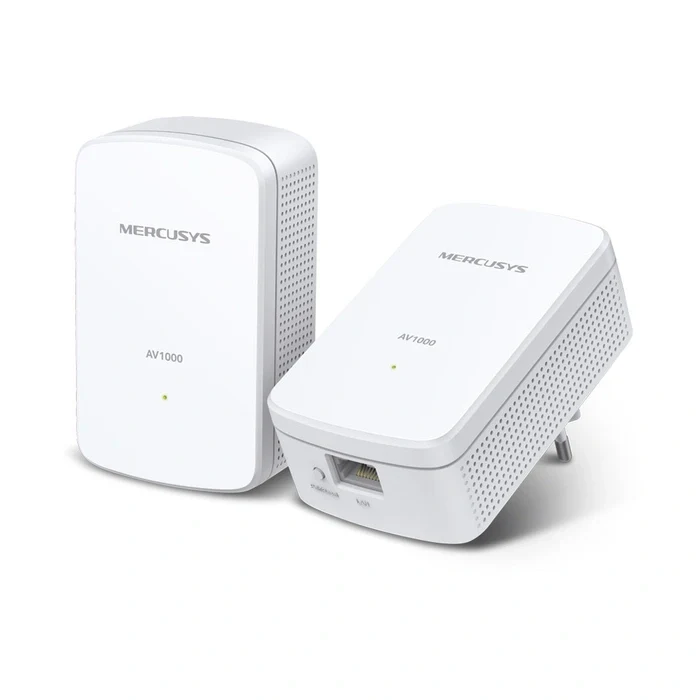

Mercusys MP500 KIT AV1000 Gigabit Powerline Starter Kit Specifications
| General | |
|---|---|
| Brand | Mercusys |
| Model | MP500 KIT |
| Part Number | MP500-KIT |
| Product Type | Powerline Starter Kit |
| Powerline | |
| Data Rate | Up to 1000Mbps |
| Standards | HomePlug AV2, HomePlug AV, IEEE 1901 |
| Range | Up to 300m over the same electrical circuit |
| Modulation | OFDM |
| Encryption | 128-bit AES |
| Ports & Controls | |
| Ethernet | 1x Gigabit Ethernet port per adapter |
| Ethernet Standards | IEEE 802.3, 802.3u, 802.3ab |
| Button | Pair/Reset |
| LED | Power |
| Features | |
| Setup | Plug and play, no new wiring or configuration needed |
| Expansion | Add further powerline adapters to extend the network |
| Physical | |
| Dimensions | 101 x 60 x 36mm |
| Power Consumption | 2.87W max, 2.35W typical, 0.64W standby |
| In the Box | Powerline adapters, 2m RJ45 Ethernet cable, quick installation guide |
| Certifications | CE, RoHS |
Key Features
- Gigabit powerline: Uses HomePlug AV2 for powerline data rates of up to 1000Mbps.
- Wired where you need it: Each adapter has a Gigabit Ethernet port for a PC, console, TV or access point.
- Long reach: Works up to 300m apart on the same electrical circuit.
- Secure pairing: A Pair button sets up 128-bit AES encryption between adapters.
- No new cabling: Plug one adapter in near the router and the other where a wired connection is needed.
About the Mercusys MP500 KIT
The Mercusys MP500 KIT is an AV1000 powerline starter kit that carries your network over the home’s existing electrical wiring. Plug one adapter in near the router, connect it with Ethernet, and plug the other in where you need a wired connection, up to 300m away on the same circuit. Each adapter offers a Gigabit Ethernet port, HomePlug AV2 data rates of up to 1000Mbps and 128-bit AES encryption set with the Pair button. It suits homes and small offices where Wi-Fi struggles through thick walls, for smart TVs, gaming consoles or a desktop PC.
