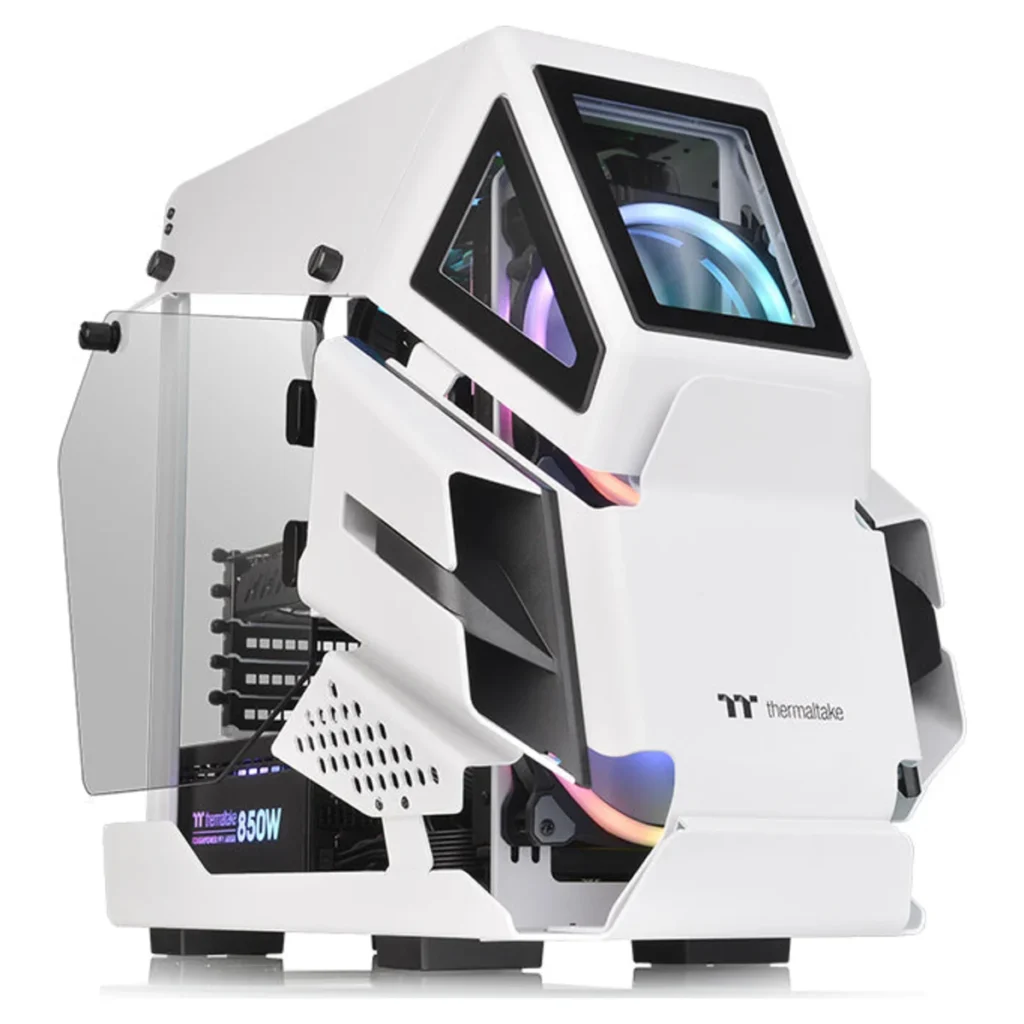

Thermaltake AH T200 Snow Micro-ATX Gaming Case (White) – Overview
Form factor
Micro-ATX micro case
Takes Mini-ITX and Micro-ATX motherboards
Micro-ATX micro case
Takes Mini-ITX and Micro-ATX motherboards
Design
Helicopter-inspired frame
Open, frame-style body with the hardware on display
Helicopter-inspired frame
Open, frame-style body with the hardware on display
Glass
2 x tempered glass panels
Clear view of the components from both sides
2 x tempered glass panels
Clear view of the components from both sides
Fans
None included
Room for 2 x 120/140mm at the front and 2 x 120/140mm at the top
None included
Room for 2 x 120/140mm at the front and 2 x 120/140mm at the top
Radiators
Up to 280mm front
Front supports 120, 140, 240 or 280mm radiators
Up to 280mm front
Front supports 120, 140, 240 or 280mm radiators
GPU clearance
Up to 320 mm
Five expansion slots
Up to 320 mm
Five expansion slots
CPU cooler
Up to 150 mm
Maximum air cooler height
Up to 150 mm
Maximum air cooler height
Front I/O
USB-C + 2 x USB 3.0
USB 3.1 Gen 2 Type-C, two USB 3.0 and HD audio
USB-C + 2 x USB 3.0
USB 3.1 Gen 2 Type-C, two USB 3.0 and HD audio
Warranty
3 Year Carry-In
Thermaltake manufacturer warranty
3 Year Carry-In
Thermaltake manufacturer warranty
Thermaltake AH T200 Snow Micro-ATX Gaming Case (White) Specifications
| General | |
|---|---|
| Brand | Thermaltake |
| Model | AH T200 Snow Micro Chassis |
| Part number | CA-1R4-00S6WN-00 |
| Case type | Micro case |
| Colour | White |
| Material | SPCC steel |
| Side panels | Tempered glass x 2 |
| Compatibility | |
| Motherboards | Mini-ITX (6.7″ x 6.7″), Micro-ATX (9.6″ x 9.6″) |
| Expansion slots | 5 |
| Storage | 2 x 3.5″ or 3 x 2.5″ (3.5″ HDD thickness up to 22 mm) |
| Power supply | Standard PS2 (ATX) PSU, not included; up to 180 mm long |
| Max GPU length | 320 mm |
| Max CPU cooler height | 150 mm |
| Cooling | |
| Pre-installed fans | None |
| Front fan support | 2 x 120mm or 2 x 140mm |
| Top fan support | 2 x 120mm or 2 x 140mm |
| Front radiator support | 120 / 140 / 240 / 280mm |
| Front Panel | |
| I/O ports | 1 x USB 3.1 Gen 2 Type-C, 2 x USB 3.0, 1 x HD Audio |
| Physical | |
| Dimensions | 444.2 x 282 x 551.5 mm |
| Weight | 10.8 kg |
| In the Box and Warranty | |
| In the box | AH T200 Snow chassis |
| Warranty | 3 Year Thermaltake Carry-In |
About the Thermaltake AH T200 Snow Micro-ATX Gaming Case (White)
The Thermaltake AH T200 Snow is a white Micro-ATX case with a helicopter-inspired, frame-style design that puts the build on show behind two tempered glass panels. It takes Mini-ITX and Micro-ATX motherboards, graphics cards up to 320 mm, air coolers up to 150 mm tall and a standard ATX power supply up to 180 mm. No fans are included, so builders can choose their own: up to four 120mm or 140mm fans fit across the front and top, and the front takes radiators up to 280mm. Front I/O includes USB 3.1 Gen 2 Type-C. It suits show builds where looks come first.
