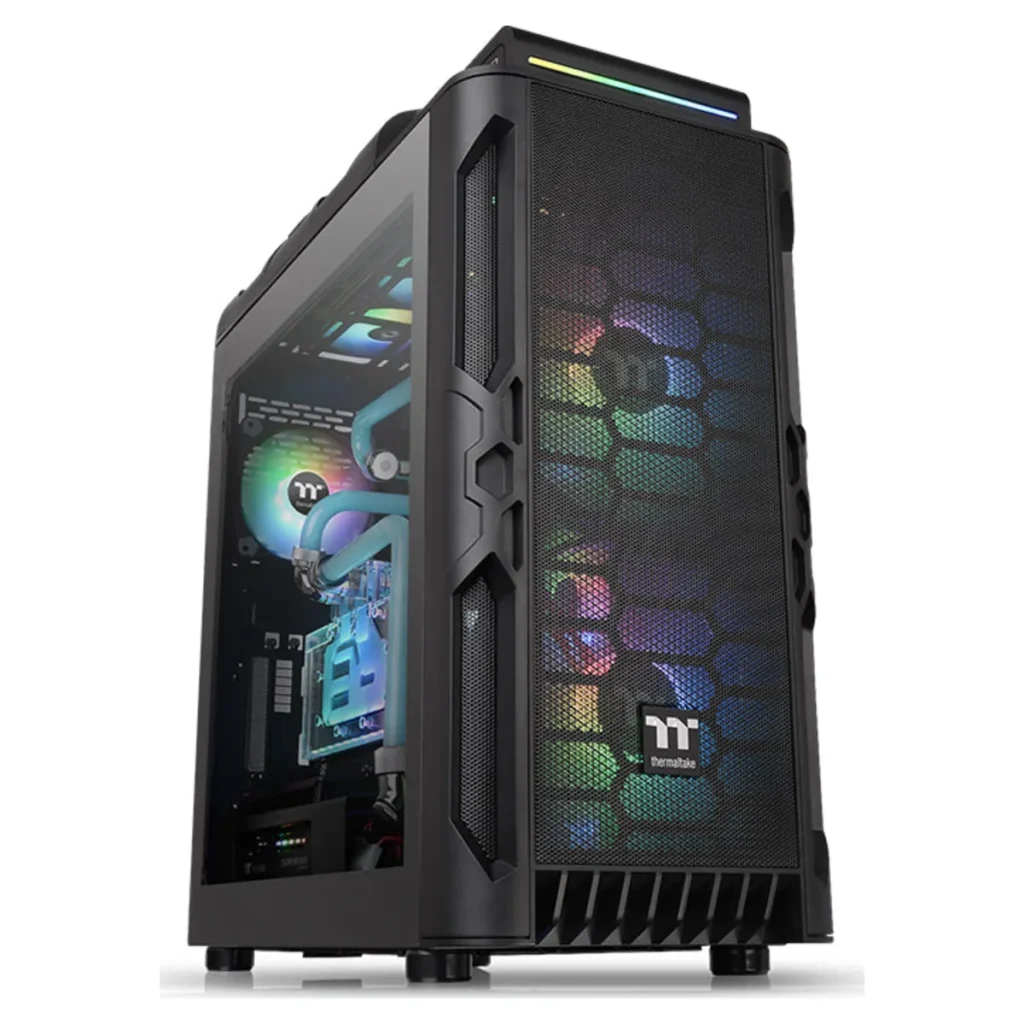

Thermaltake Level 20 RS ARGB Mid-Tower Gaming Case (Black) – Overview
Form factor
ATX mid tower
Takes Mini-ITX, Micro-ATX and ATX motherboards
ATX mid tower
Takes Mini-ITX, Micro-ATX and ATX motherboards
Cooling
2 x 200mm ARGB + 1 x 120mm
Front 200mm ARGB intakes (600 RPM) and a rear 120mm exhaust
2 x 200mm ARGB + 1 x 120mm
Front 200mm ARGB intakes (600 RPM) and a rear 120mm exhaust
Glass
2 x 4mm tempered glass
Glass panels to show off the build
2 x 4mm tempered glass
Glass panels to show off the build
Radiators
Up to 420mm front
Up to 360mm at the top; Tt LCS certified
Up to 420mm front
Up to 360mm at the top; Tt LCS certified
GPU clearance
Up to 400 mm
282 mm with the HDD rack fitted; riser GPU support bracket
Up to 400 mm
282 mm with the HDD rack fitted; riser GPU support bracket
Expansion
8 slots
PSU cover and riser GPU support bracket built in
8 slots
PSU cover and riser GPU support bracket built in
CPU cooler
Up to 172 mm
Maximum air cooler height
Up to 172 mm
Maximum air cooler height
Front I/O
2 x USB 3.0 + 2 x USB 2.0
HD audio and an RGB button
2 x USB 3.0 + 2 x USB 2.0
HD audio and an RGB button
Warranty
3 Year Carry-In
Thermaltake manufacturer warranty
3 Year Carry-In
Thermaltake manufacturer warranty
Thermaltake Level 20 RS ARGB Mid-Tower Gaming Case (Black) Specifications
| General | |
|---|---|
| Brand | Thermaltake |
| Model | Level 20 RS ARGB Mid Tower Chassis |
| Part number | CA-1P8-00M1WN-00 |
| Case type | Mid tower |
| Colour | Black (exterior and interior) |
| Material | SPCC steel |
| Side panels | 4mm tempered glass x 2 |
| Compatibility | |
| Motherboards | Mini-ITX, Micro-ATX, ATX |
| Expansion slots | 8 |
| Power supply | Standard PS2 (ATX) PSU, not included; up to 220 mm long |
| Max GPU length | 400 mm without HDD rack, 282 mm with HDD rack |
| Max CPU cooler height | 172 mm |
| Cooling | |
| Pre-installed fans | Front: 2 x 200mm ARGB (600 RPM, 29.2 dBA) intake; Rear: 1 x 120mm (1000 RPM, 16 dBA) exhaust |
| Front fan support | 2 x 200mm, 3 x 120mm or 3 x 140mm |
| Top fan support | 2 x 200mm, 3 x 120mm or 2 x 140mm |
| Rear fan support | 1 x 120mm |
| Front radiator support | 120 / 140 / 240 / 280 / 360 / 420mm |
| Top radiator support | 120 / 140 / 240 / 280 / 360mm |
| Rear radiator support | 120mm |
| Distro plate | Pacific DP100-D5 Plus on the motherboard right side (without HDD rack) |
| Lighting | ARGB, sync with motherboard RGB software |
| Front Panel | |
| I/O ports | 2 x USB 3.0, 2 x USB 2.0, 1 x HD Audio |
| Buttons | RGB button |
| Physical | |
| Dimensions | 524 x 240.8 x 553 mm |
| Weight | 12.23 kg |
| In the Box and Warranty | |
| In the box | Level 20 RS ARGB chassis 2 x 200mm ARGB fans and 1 x 120mm fan (pre-installed) |
| Warranty | 3 Year Thermaltake Carry-In |
About the Thermaltake Level 20 RS ARGB Mid-Tower Gaming Case (Black)
The Thermaltake Level 20 RS ARGB is a black ATX mid tower from Thermaltake’s Level 20 line, combining two 4mm tempered glass panels with a pair of 200mm ARGB fans behind the front panel and a 120mm rear exhaust. Lighting can be set with the RGB button or synced with motherboard RGB software. It is built with liquid cooling in mind: a 420mm radiator fits at the front, 360mm at the top, and a Pacific DP100-D5 Plus distro plate can be mounted. Graphics cards up to 400 mm fit with the HDD rack removed, and a PSU cover and riser GPU support bracket are built in.
