Thermaltake The Tower 100 Snow Mini-ITX Mini-Tower Gaming Case (White) – Overview
Form factor
Mini-ITX mini tower
Compact vertical body with the motherboard I/O facing up
Mini-ITX mini tower
Compact vertical body with the motherboard I/O facing up
Glass
3 x 4mm tempered glass
Panoramic glass panels show the build from three sides
3 x 4mm tempered glass
Panoramic glass panels show the build from three sides
Cooling
2 x 120mm fans
Pre-installed top and rear exhaust fans, 1500 RPM
2 x 120mm fans
Pre-installed top and rear exhaust fans, 1500 RPM
GPU clearance
Up to 330 mm
Room for a full-length graphics card
Up to 330 mm
Room for a full-length graphics card
CPU cooler
Up to 190 mm
Maximum air cooler height; 120mm radiator at the top
Up to 190 mm
Maximum air cooler height; 120mm radiator at the top
Power supply
Standard ATX (PS2) PSU
Up to 180 mm long, not included
Standard ATX (PS2) PSU
Up to 180 mm long, not included
Storage
Up to 4 drives
2 x 2.5″ SSD on the side bracket plus 2 x 2.5″/3.5″ at the rear
Up to 4 drives
2 x 2.5″ SSD on the side bracket plus 2 x 2.5″/3.5″ at the rear
Front I/O
USB-C + 2 x USB 3.0
USB 3.2 Gen 2 Type-C, two USB 3.0 and two HD audio jacks
USB-C + 2 x USB 3.0
USB 3.2 Gen 2 Type-C, two USB 3.0 and two HD audio jacks
Warranty
3 Year Carry-In
Thermaltake manufacturer warranty
3 Year Carry-In
Thermaltake manufacturer warranty
Thermaltake The Tower 100 Snow Mini-ITX Mini-Tower Gaming Case (White) Specifications
| General | |
|---|---|
| Brand | Thermaltake |
| Model | The Tower 100 Snow Mini Chassis |
| Part number | CA-1R3-00S6WN-00 |
| Case type | Mini tower |
| Colour | White (Snow) |
| Material | SPCC steel |
| Side panels | 4mm tempered glass x 3 |
| Compatibility | |
| Motherboards | Mini-ITX (6.7″ x 6.7″) |
| Expansion slots | 2 |
| Storage | 2 x 2.5″ SSD (side bracket); 2 x 2.5″ or 2 x 3.5″ HDD at the rear (without rear fan) |
| Power supply | Standard PS2 (ATX) PSU, not included; up to 180 mm long |
| Max GPU length | 330 mm |
| Max CPU cooler height | 190 mm |
| Cooling | |
| Pre-installed fans | Top: 1 x 120mm (1500 RPM, 35.8 dBA) exhaust; Rear: 1 x 120mm (1500 RPM, 35.8 dBA) exhaust |
| Top fan support | 1 x 120mm or 1 x 140mm |
| Rear fan support | 1 x 120mm or 1 x 140mm |
| PSU cover fan support | 1 x 120mm or 1 x 140mm |
| Radiator support | Top: 1 x 120mm |
| Front Panel | |
| I/O ports | 1 x USB 3.2 Gen 2 Type-C, 2 x USB 3.0, 2 x HD Audio |
| Physical | |
| Dimensions | 462.8 x 266 x 266 mm |
| Weight | 6.1 kg |
| In the Box and Warranty | |
| In the box | The Tower 100 Snow chassis 2 x 120mm fans (pre-installed) |
| Warranty | 3 Year Thermaltake Carry-In |
About the Thermaltake The Tower 100 Snow Mini-ITX Mini-Tower Gaming Case (White)

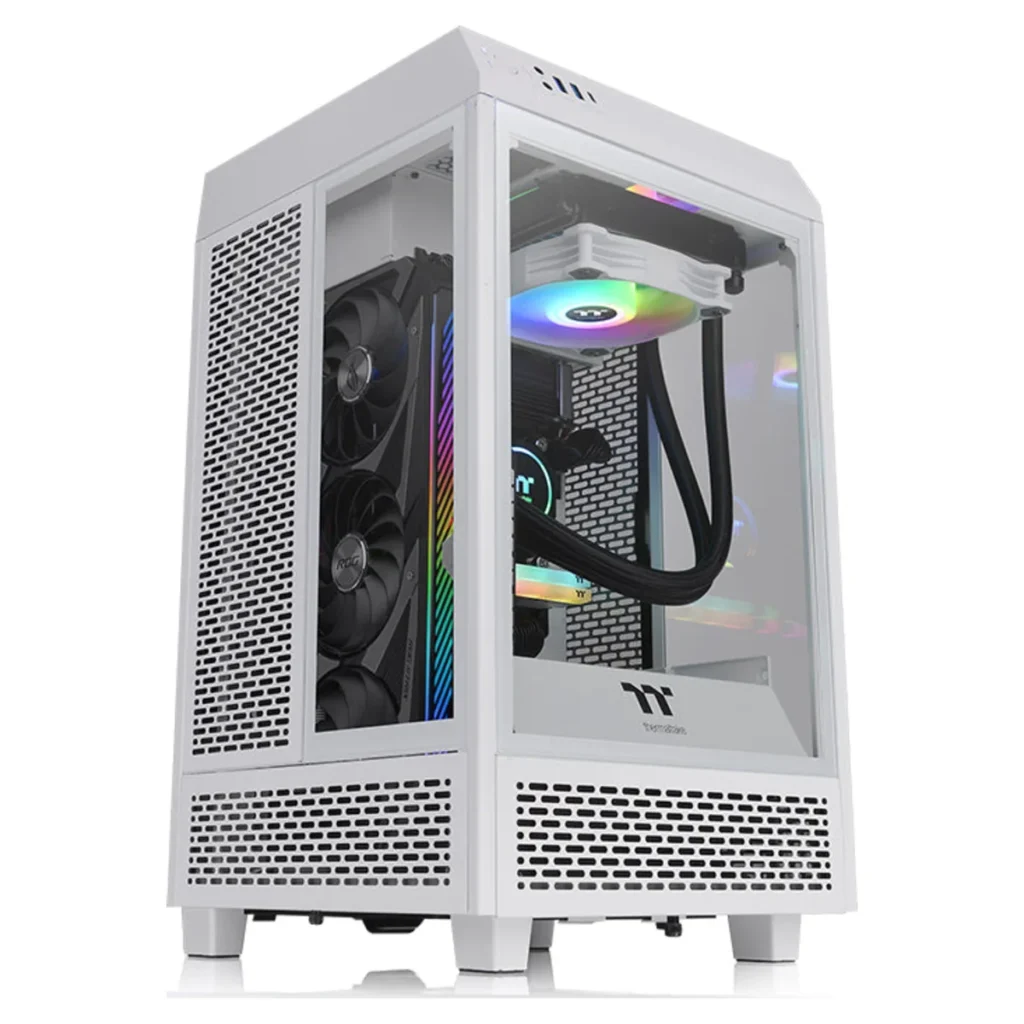

The Thermaltake The Tower 100 Snow is a white Mini-ITX mini tower with a vertical body and three 4mm tempered glass panels that give a panoramic view of the hardware. It is compact at 462.8 x 266 x 266 mm, yet still fits a 330 mm graphics card, a 190 mm tall air cooler and a standard ATX power supply up to 180 mm long. Two 120mm fans are pre-installed as top and rear exhaust, and a 120mm radiator can go at the top. Storage covers two 2.5″ SSDs plus two more drives at the rear. Front I/O includes USB 3.2 Gen 2 Type-C.
