Thermaltake View 270 TG ARGB Snow Mid-Tower Gaming Case (White) – Overview
Form factor
E-ATX mid tower
Takes Mini-ITX, Micro-ATX, ATX and E-ATX motherboards
E-ATX mid tower
Takes Mini-ITX, Micro-ATX, ATX and E-ATX motherboards
Glass
Front and left glass panels
Two tempered glass panels for a panoramic view of the build
Front and left glass panels
Two tempered glass panels for a panoramic view of the build
Cooling
1 x CT140 ARGB fan
Pre-installed rear exhaust, 1500 RPM, 30.5 dBA
1 x CT140 ARGB fan
Pre-installed rear exhaust, 1500 RPM, 30.5 dBA
Fan mounts
Side and PSU cover intakes
2 x 120mm on the motherboard side and 3 x 120mm on the PSU cover
Side and PSU cover intakes
2 x 120mm on the motherboard side and 3 x 120mm on the PSU cover
GPU clearance
Up to 420 mm
Seven expansion slots
Up to 420 mm
Seven expansion slots
Radiators
Up to 360mm top
Top 120/240/360mm, rear 120mm
Up to 360mm top
Top 120/240/360mm, rear 120mm
CPU cooler
Up to 180 mm
Maximum air cooler height
Up to 180 mm
Maximum air cooler height
Front I/O
USB-C + 2 x USB 3.0
USB 3.2 Gen 2 Type-C, two USB 3.0 and HD audio
USB-C + 2 x USB 3.0
USB 3.2 Gen 2 Type-C, two USB 3.0 and HD audio
Warranty
3 Year Carry-In
Thermaltake manufacturer warranty
3 Year Carry-In
Thermaltake manufacturer warranty
Thermaltake View 270 TG ARGB Snow Mid-Tower Gaming Case (White) Specifications
| General | |
|---|---|
| Brand | Thermaltake |
| Model | View 270 TG ARGB Snow Mid Tower Chassis |
| Part number | CA-1Y7-00M6WN-00 |
| Case type | Mid tower |
| Colour | White (Snow) |
| Material | SPCC steel |
| Glass panels | Tempered glass x 2 (front and left) |
| Compatibility | |
| Motherboards | Mini-ITX, Micro-ATX, ATX, E-ATX (12″ x 13″) |
| Expansion slots | 7 |
| Drive bays | 2 x 3.5″, 1 x 2.5″ or 2 x 2.5″ (as listed by Thermaltake) |
| Power supply | Standard PS2 (ATX) PSU, not included; up to 220 mm long |
| Max GPU length | 420 mm |
| Max CPU cooler height | 180 mm |
| Cooling | |
| Pre-installed fans | Rear: 1 x CT140 ARGB 140mm (1500 RPM, 30.5 dBA) exhaust |
| Top fan support | 3 x 120mm or 2 x 140mm |
| Right (motherboard side) fan support | 2 x 120mm |
| Rear fan support | 1 x 120mm or 1 x 140mm |
| Power cover fan support | 3 x 120mm |
| Top radiator support | 120 / 240 / 360mm |
| Rear radiator support | 120mm |
| Lighting | ARGB fan, sync with motherboard RGB software |
| Front Panel | |
| I/O ports | 1 x USB 3.2 Gen 2 Type-C, 2 x USB 3.0, 1 x HD Audio |
| Physical | |
| Dimensions | 456 x 230 x 454 mm |
| Weight | 6.3 kg |
| In the Box and Warranty | |
| In the box | View 270 TG ARGB Snow Mid Tower Chassis chassis 1 x CT140 ARGB 140mm fan (pre-installed) |
| Warranty | 3 Year Thermaltake Carry-In |
About the Thermaltake View 270 TG ARGB Snow Mid-Tower Gaming Case (White)

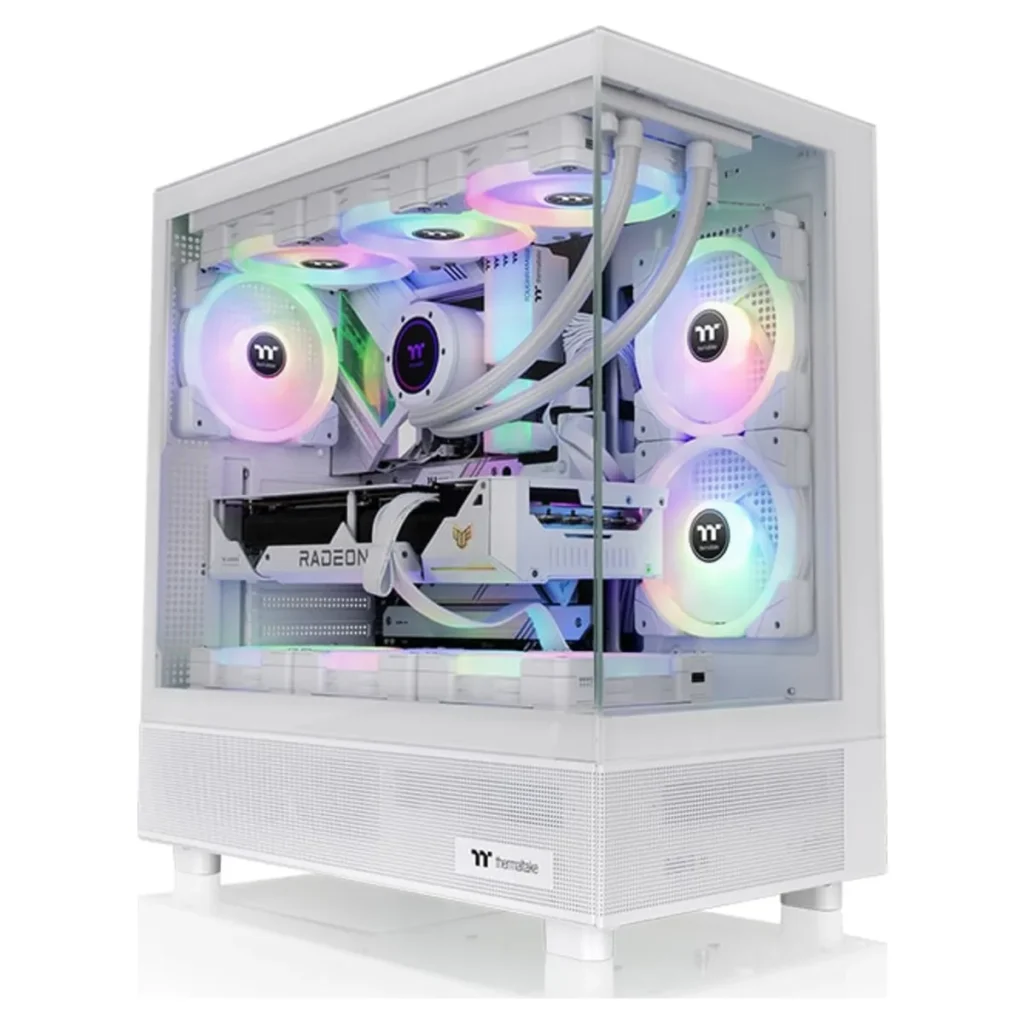

The Thermaltake View 270 TG ARGB Snow is the white version of the View 270, an E-ATX mid tower with tempered glass across the front and left side for a clear corner view of a white build. Fresh air comes in through the motherboard side and PSU cover, which take two and three 120mm fans, and a 360mm radiator can go at the top. A CT140 ARGB fan is fitted at the rear and syncs with motherboard RGB software. It fits a 420 mm graphics card and a 180 mm air cooler, and front I/O includes USB 3.2 Gen 2 Type-C.
