Description

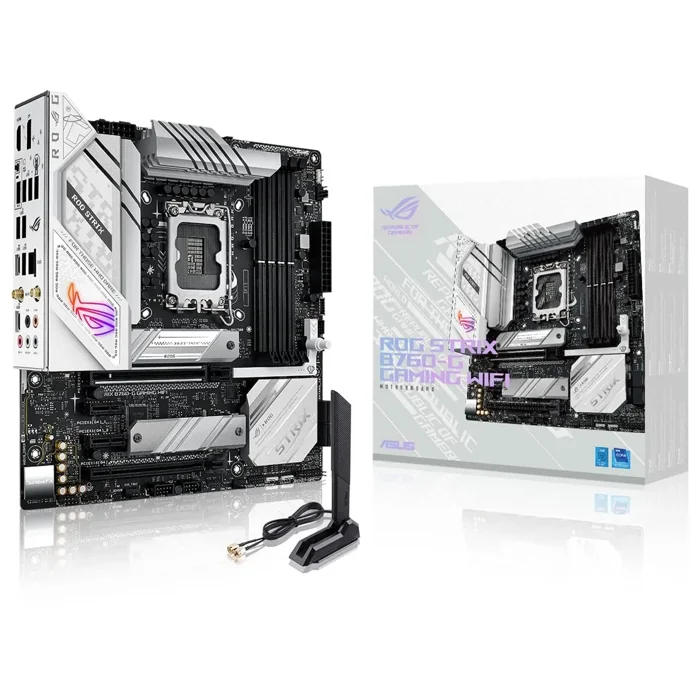

ROG STRIX B760-G GAMING WIFICPU:
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold, and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
Chipset:
Intel® B760 Chipset
Memory:
4 x DIMM slots, Max. 192GB, DDR5
7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
Graphics:
1 x DisplayPort
1 x HDMI®
Expansion Slots:
Intel® 13th & 12th Gen Processors
1 x PCIe 5.0 x16 slot(s)
Intel® B760 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
2x PCIe 4.0 x1 slots
Storage:
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel® B760 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
(*Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.)Ethernet:
1 x Intel® 2.5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth:
Wi-Fi 6E
2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth® v5.3
(*WiFi 6E 6GHz regulatory may vary between countries.)USB:
Rear USB (Total 9 ports)
1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port(s) (1 x Type-A)
3x USB 3.2 Gen 1 port(s) (2 x Type-A, 1 x USB Type-C®)
4 x USB 2.0 port(s) (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 header supports additional 4 USB 2.0 ports
Audio:
ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A
Impedance sense for front and rear headphone outputs
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
Supports up to 32-Bit/192 kHz playback*
(*Due to limitations in HAD bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.)Back Panel I/O Ports:
1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port(s) (1 x Type-A)
3x USB 3.2 Gen 1 port(s) (2 x Type-A, 1 x USB Type-C®)
4 x USB 2.0 port(s) (4 x Type-A)
1 x HDMI® port
1 x DisplayPort
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet
5 x Audio jacks
1 x BIOS FlashBack™ button
Internal I/O Connectors: (Various internal connectors such as Fan and Cooling, Power related, Storage related, USB, and more.)Miscellaneous: (Various features like Addressable Gen 2 header(s), AURA RGB header(s), Clear CMOS header, Front Panel Audio header (AAFP), and more.)Special Features: (Various special features like Extreme Engine Digi+, ASUS Q-Design, ASUS Thermal Solution, ASUS EZ DIY, AURA Sync, and more.)Software Features: (Includes ROG Exclusive Software, ASUS Exclusive Software, UEFI BIOS, and more.)
